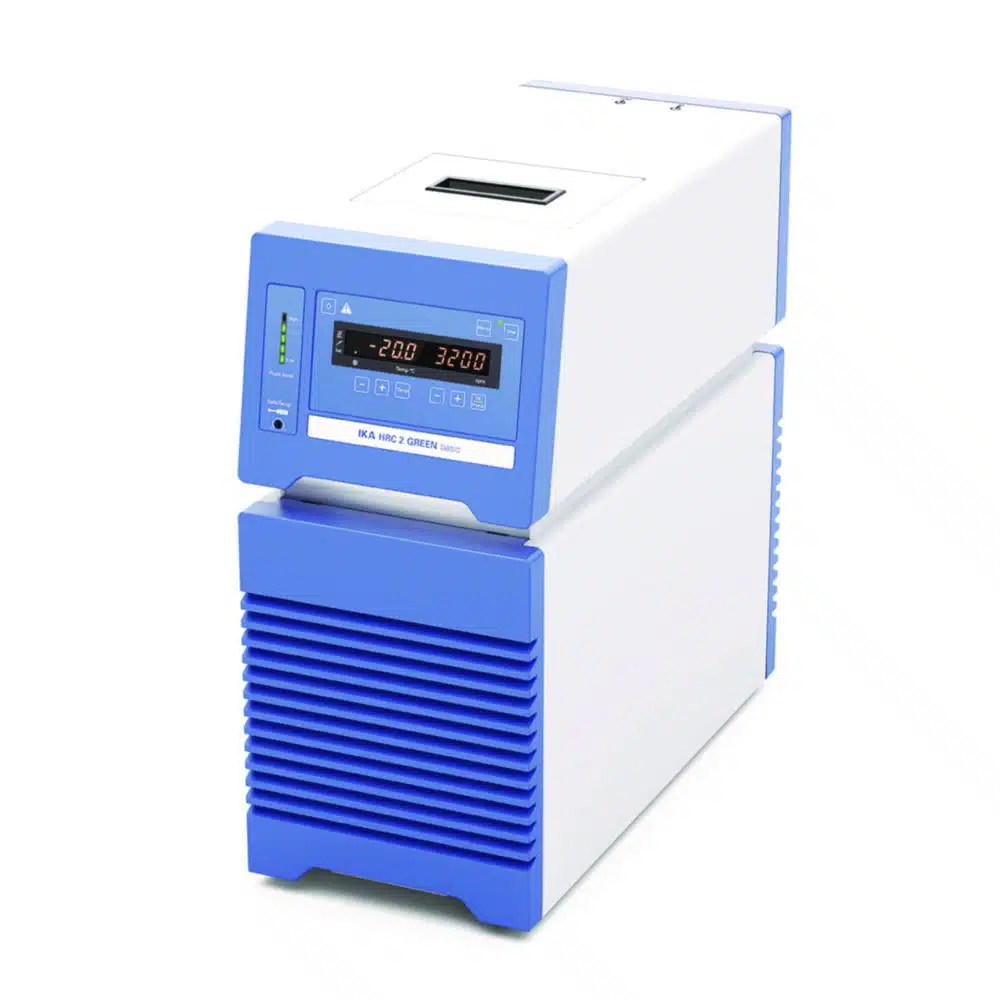

Refrigerated/heated circulator HRC 2 GREEN basic

• Type: HRC 2 GREEN basic
• Volume bath: 1.4 ... 4 l
• Temperature: -30 ... 100 °C
• Temperature stability: ±0,1 K
• Ext. dim. (WxDxH): 220 x 525 x 480 mm
• Max. delivery pressure: 0.5 bar
• Max. suction pressure: 0.25 bar
• Weight: 26 kg
• Refrigerant: R290
• IP code: IP 21
• Cooling capacity at 20 °C: 620 W
• Heating capacity: 1500 W

The compact refrigerated/heated circulator impresses with an operating temperature range of -30 to 100 °C and a powerful, continuously adjustable pressure and suction pump. The demand- and speed-controlled compressor, which is operated with natural refrigerant, achieves high energy efficiency. The insulation of the bath reservoir enables fast heat-up times and reduces heat input at low temperatures.

• Demand-controlled cooling unit
• Natural refrigerant R290
• Speed-controlled PEEK pump
• Digital level indicator
• Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
• Use of up to 2.5 l of thermofluid without refilling
• Easy-to-clean stainless steel mesh air filter
• Adjustable safety circuit
• RS 232 and USB interfaces
• Safety classification III (FL) in accordance with DIN 12876
