Peter Huber Kältemaschinenbau
Cooling circulators CC
Combinations of immersion thermostats with…
€ 6,060.29 – € 7,775.46 per unit / excl. VAT
Available to Order
Cooling circulators KISS
Manufacturer: Peter Huber Kältemaschinenbau
Specifications
- Material bath: Stainless steel
- Temperature stability: ±0,05 K
- Max. flow rate: 14
- Max. suction capacity: 10.5 l/min
- Max. delivery pressure: 0.25 bar
- Max. suction pressure: 0.17 bar
- Type of display: OLED
- Refrigerant: R290
- Heating capacity: 2.1 kW
- Power supply: 220 ... 240 V, 50/60 Hz
- IP code: IP 20
Product Description

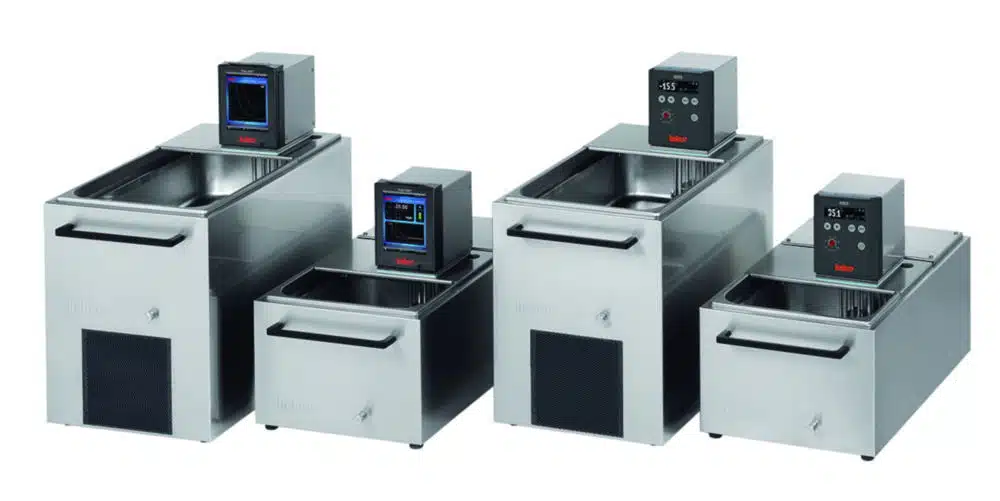

Combinations of immersion thermostats with insulated cooling baths are cost-effective solutions for object temperature control in a bath at temperatures ranging from -20/-30 to 200 °C. The cooling baths operate with a natural refrigerant. With a pump adapter, the combinations can be used for both externally closed and externally open (with optional level control) temperature applications. The devices are equipped with overtemperature and low level protection.
- Powerful pressure/suction pump
- Large, bright OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, actual temperature, Tmin, Tmax
- Status displays for pump, cooling, and heating
- RS232 and USB interface
- Autostart function for power failure
- Safety class III (FL) acc. to DIN 12876
Article Overview
Cooling circulators KISS
| Stock | Image | SKU | Type | Volume bath | Temperature | Cooling capacity at 20 °C | Opening (WxD) | Bath depth | Ext. dim. (WxDxH) | Weight | Name | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6287658 | KISS-K12 | 10.5 l | -20 ... 200 °C | 0,25 kW | 290 x 152 mm | 150 mm | 350 x 560 x 430 mm | 28 kg | Cooling circulators KISS - KISS K12, 10.5 l, 20 ... 200 °C, 0,25 kW, 290 x 152 mm, 150 mm, 350 x 560 x 430 mm, 28 kg | per unit / excl. VAT€ 5,353.43 | ||
| 6272329 | KISS-K15 | 15 l | -20 ... 200 °C | 0,25 kW | 290 x 152 mm | 200 mm | 350 x 560 x 430 mm | 28 kg | Cooling circulators KISS - KISS K15, 15 l, 20 ... 200 °C, 0,25 kW, 290 x 152 mm, 200 mm, 350 x 560 x 430 mm, 28 kg | per unit / excl. VAT€ 6,101.87 | ||
| 6272330 | KISS-K20 | 17 l | -30 ... 200 °C | 0,4 kW | 290 x 329 mm | 150 mm | 350 x 555 x 615 mm | 41 kg | Cooling circulators KISS - KISS K20, 17 l, 30 ... 200 °C, 0,4 kW, 290 x 329 mm, 150 mm, 350 x 555 x 615 mm, 41 kg | per unit / excl. VAT€ 6,652.80 | ||
| 6272331 | KISS-K25 | 23.5 l | -30 ... 200 °C | 0,4 kW | 290 x 329 mm | 200 mm | 350 x 555 x 615 mm | 39 kg | Cooling circulators KISS - KISS K25, 23.5 l, 30 ... 200 °C, 0,4 kW, 290 x 329 mm, 200 mm, 350 x 555 x 615 mm, 39 kg | per unit / excl. VAT€ 7,047.81 |
