Refrigeration bath circulators KISS-K6

• Volume bath: 4.5 l
• Material bath: Stainless steel
• Temperature: -25 ... 200 °C
• Temperature stability: ±0,05 K
• Max. flow rate: 14
• Max. suction capacity: 10.5 l/min
• Max. delivery pressure: 0.25 bar
• Max. suction pressure: 0.17 bar
• Type of display: OLED
• Refrigerant: R290
• Heating capacity: 2.1 kW
• Opening (WxD): 140 x 120 mm
• Bath depth: 150 mm
• Ext. dim. (WxDxH): 210 x 400 x 546 mm
• Power supply: 208 ... 240 V, 50/60 Hz
• Weight: 25 kg
• IP code: IP 20

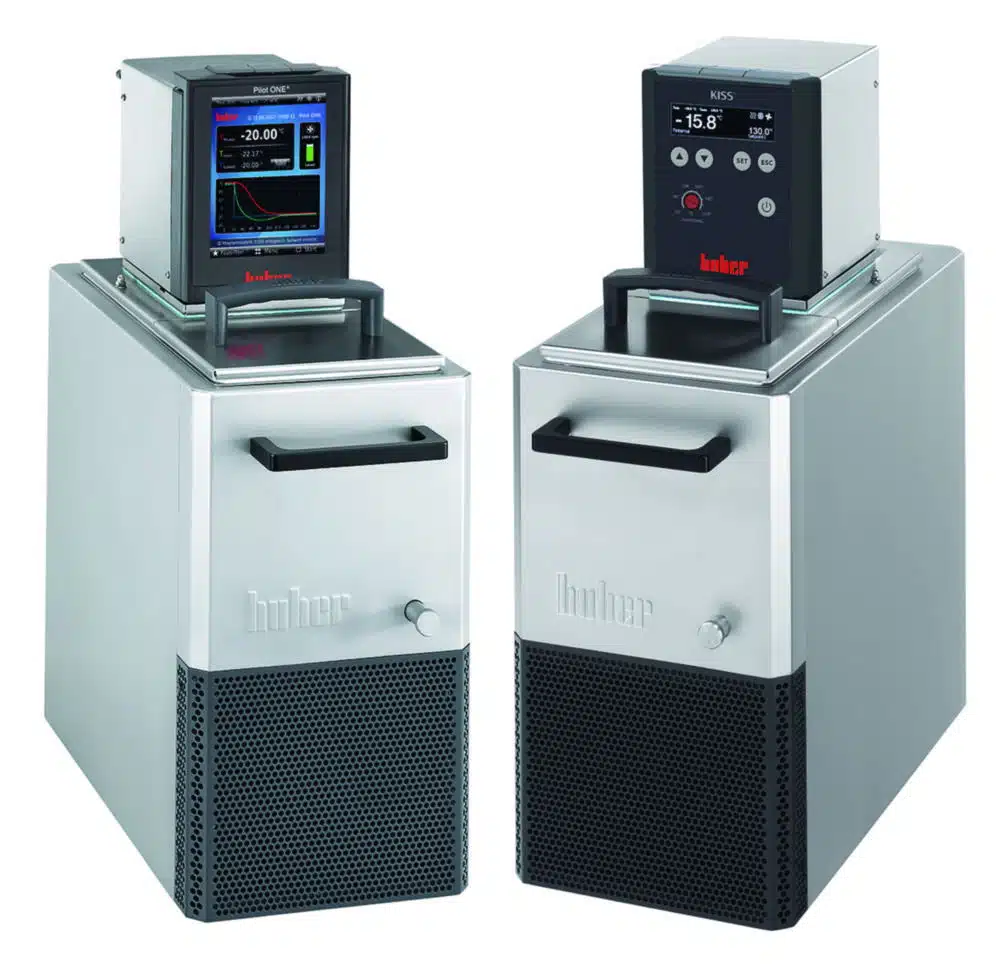

The K6 models are compact cooling/heating bath thermostats for temperatures ranging from -25 to 200 °C. With the integrated circulation pump, the combinations can be used for both externally closed and externally open (with optional level control)temperature applications. The devices are equipped with overtemperature and low level protection. All units use natural refrigerant as standard.

• Powerful pressure/suction pump
• Large, bright OLED display
• Simple operation with menu navigation
• Simultaneous display of setpoint, actual temperature, Tmin, Tmax
• Status displays for pump, cooling, and heating
• RS232 and USB interface
• Autostart function for power failure
• Safety class III (FL) acc. to DIN 12876
