Available to Order?

Heating bath HB 1500-S

Manufacturer: Juchheim GmbH & Co.KG

per unit / excl. VAT€ 1,579.32 - € 1,640.66

Nominal capacity

2 l
4 l
8 l

Dim. Int. (Ø x H)

200 x 110 mm
240 x 150 mm
280 x 180 mm

Ext. dim. (WxDxH)

290 x 270 x 230 mm
360 x 290 x 255 mm
370 x 320 x 280 mm

Weight

5.4 kg
5.8 kg
8.6 kg

Heating capacity

1500 W
2000 W

Clear

Delivery and Shipping Article Overview

Item No. 780748

Manufacturer Item No.

Specifications

Type: HB 1500-S
Temperature: 20 ... 260 °C
Plug type: EU
Power supply: 230 V

Product Description

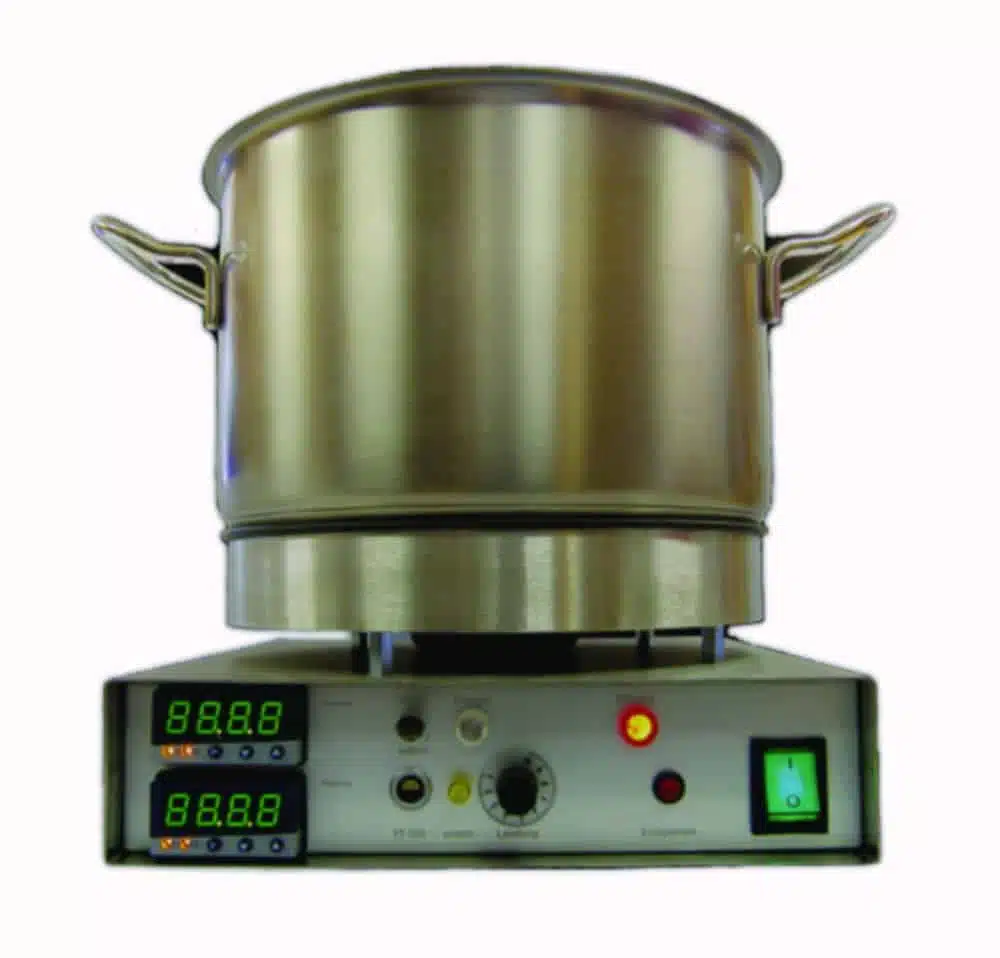

The heating bath HB 1500-S is developed for varied tasks. The bath can be filled with water, oil or sand. The appliance is equipped with 2 temperature controllers with microprocessor. The upper temperature controller serves as a safety temperature limiter. If the safety temperature is exceeded, the heating is switched off at all poles. The temperature is measured via an internal temperature sensor at the bottom of the pot.

Microprocessor controller with 4-digit 7-segment display, 10 mm high, green

Freely configurable

Self-optimising temperature control

Measuring and control range up to 260 °C

Setting of heating power from 2 to 99 %

Switchable to external sensor

Material bath/housing stainless steel, front and rear anodised aluminium

Article Overview

Heating bath HB 1500-S

SKU	Nominal capacity	Dim. Int. (Ø x H)	Ext. dim. (WxDxH)	Weight	Heating capacity	Name	Price	QuantitySelect all
9234515	2 l	200 x 110 mm	290 x 270 x 230 mm	5.4 kg	1500 W	Heating bath HB 1500-S - 2 l, 200 x 110 mm, 290 x 270 x 230 mm, 5.4 kg, 1500 W	per unit / excl. VAT€ 1,579.32	Heating bath HB 1500-S quantity
9234514	4 l	240 x 150 mm	360 x 290 x 255 mm	5.8 kg	1500 W	Heating bath HB 1500-S - 4 l, 240 x 150 mm, 360 x 290 x 255 mm, 5.8 kg, 1500 W	per unit / excl. VAT€ 1,596.85	Heating bath HB 1500-S quantity
9234513	8 l	280 x 180 mm	370 x 320 x 280 mm	8.6 kg	2000 W	Heating bath HB 1500-S - 8 l, 280 x 180 mm, 370 x 320 x 280 mm, 8.6 kg, 2000 W	per unit / excl. VAT€ 1,640.66	Heating bath HB 1500-S quantity
