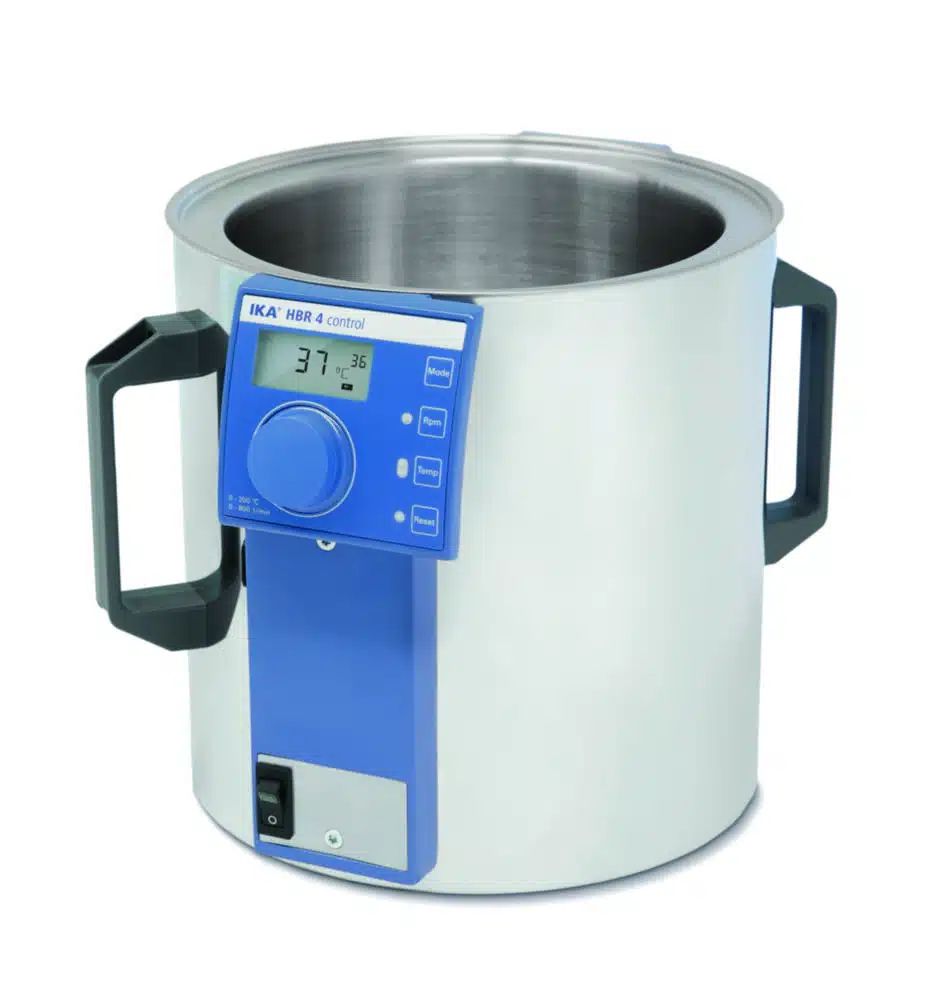

Heating bath HBR 4 control

• Type: HBR 4 control
• Nominal capacity: 4 l
• Temperature: RT ... 200 °C
• Speed: 150 ... 800 1/min
• Dim. Int. (Ø x H): 200 x 160 mm
• Ext. dim. (WxDxH): 340 x 340 x 250 mm
• Weight: 4.4 kg
• Heating capacity: 1000 W
• Plug type: EU
• Power supply: 230 V, 50/60 Hz
• IP code: IP 20

The heating bath is noted for:

• Cylindrical bath shape
• Heating elements integrated into the bath base
• Heat transfer media can be low-viscous oil (50 mPas) or water
• Two carry handles
• Infinitely variable safety temperature limiter according to DIN 12877
• Double-jacketed mantle protection against burns
• Digital display for target, actual and safety temperatures as well as speed
• Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
• RS 232 interface
