Juchheim GmbH & Co.KG

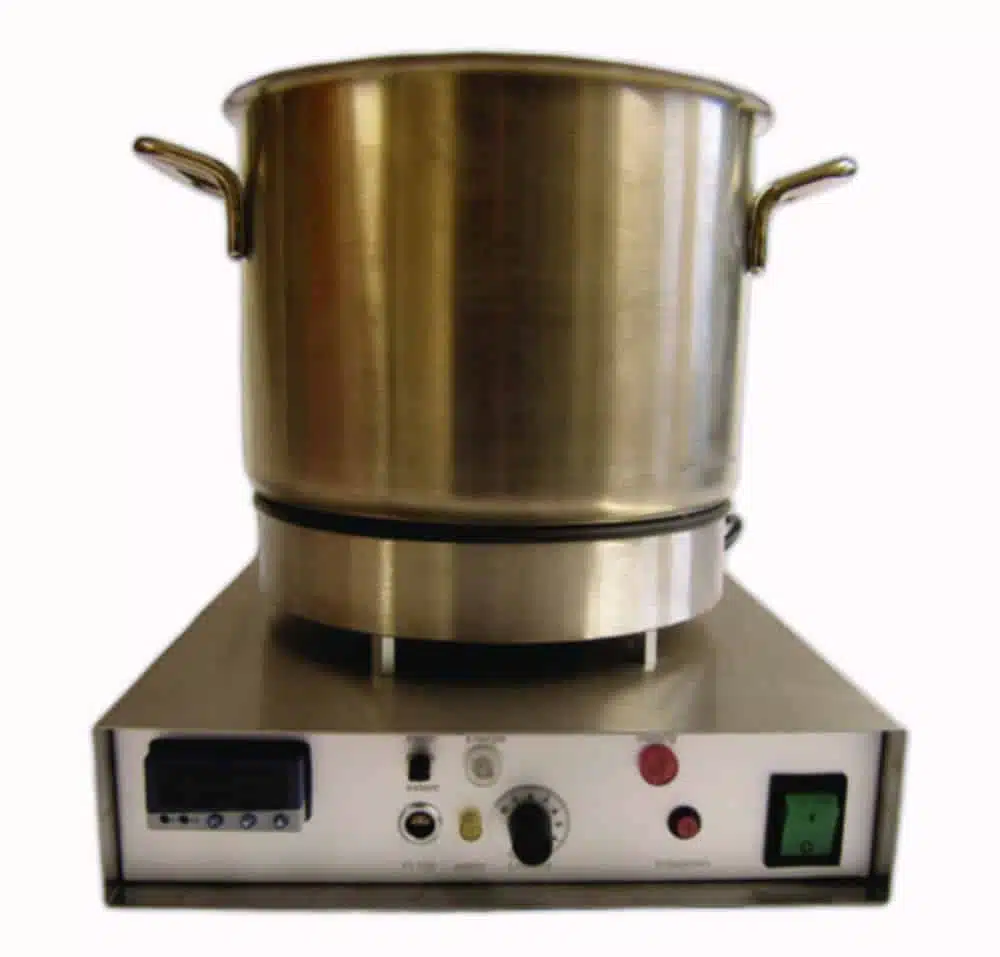

Heating bath HB 1500-S
The heating bath HB 1500-S…
€ 1,579.32 – € 1,640.66 per unit / excl. VAT
Available to Order
Heating bath HB 1500
Manufacturer: Juchheim GmbH & Co.KG
Specifications
- Type: HB 1500
- Temperature: 20 ... 260 °C
- Plug type: EU
- Power supply: 230 V
Product Description
The heating bath HB 1500 is developed for varied tasks. The bath can be filled with water, oil or sand. Modern microprocessors control the temperature. With measuring circuit monitoring for over- and under-temperature, sensor and line short-circuit, as well as sensor and line breakage.
- Microprocessor controller with 4-digits 7-segment display, 10 mm high, green
- Freely configurable
- Self-optimising temperature control
- Measuring and control range up to 260 °C
- Setting of heating power from 1 to 99 %
- Overtemperature switch-off >10 K + setpoint
- Wear-free internal temperature sensor at the bottom of the pot
- On-Off switch 2-pole, green, illuminated
- Switchable to external sensor
- Material bath/housing stainless steel, front and rear anodised aluminium
Article Overview
Heating bath HB 1500
| Stock | Image | SKU | Nominal capacity | Dim. Int. (Ø x H) | Ext. dim. (WxDxH) | Weight | Heating capacity | Name | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 | 9234512 | 2 l | 200 x 110 mm | 290 x 270 x 230 mm | 5.4 kg | 1500 W | Heating bath HB 1500 - 2 l, 200 x 110 mm, 290 x 270 x 230 mm, 5.4 kg, 1500 W | per unit / excl. VAT€ 1,439.17 | ||
| 9234511 | 4 l | 240 x 150 mm | 360 x 290 x 255 mm | 5.8 kg | 1500 W | Heating bath HB 1500 - 4 l, 240 x 150 mm, 360 x 290 x 255 mm, 5.8 kg, 1500 W | per unit / excl. VAT€ 1,456.69 | ||
| 9234510 | 8 l | 280 x 180 mm | 370 x 320 x 280 mm | 8.6 kg | 2000 W | Heating bath HB 1500 - 8 l, 280 x 180 mm, 370 x 320 x 280 mm, 8.6 kg, 2000 W | per unit / excl. VAT€ 1,500.48 |
Selected Quantity:0
Subtotal:0
In Stock & Ready to Ship
Available to Order
