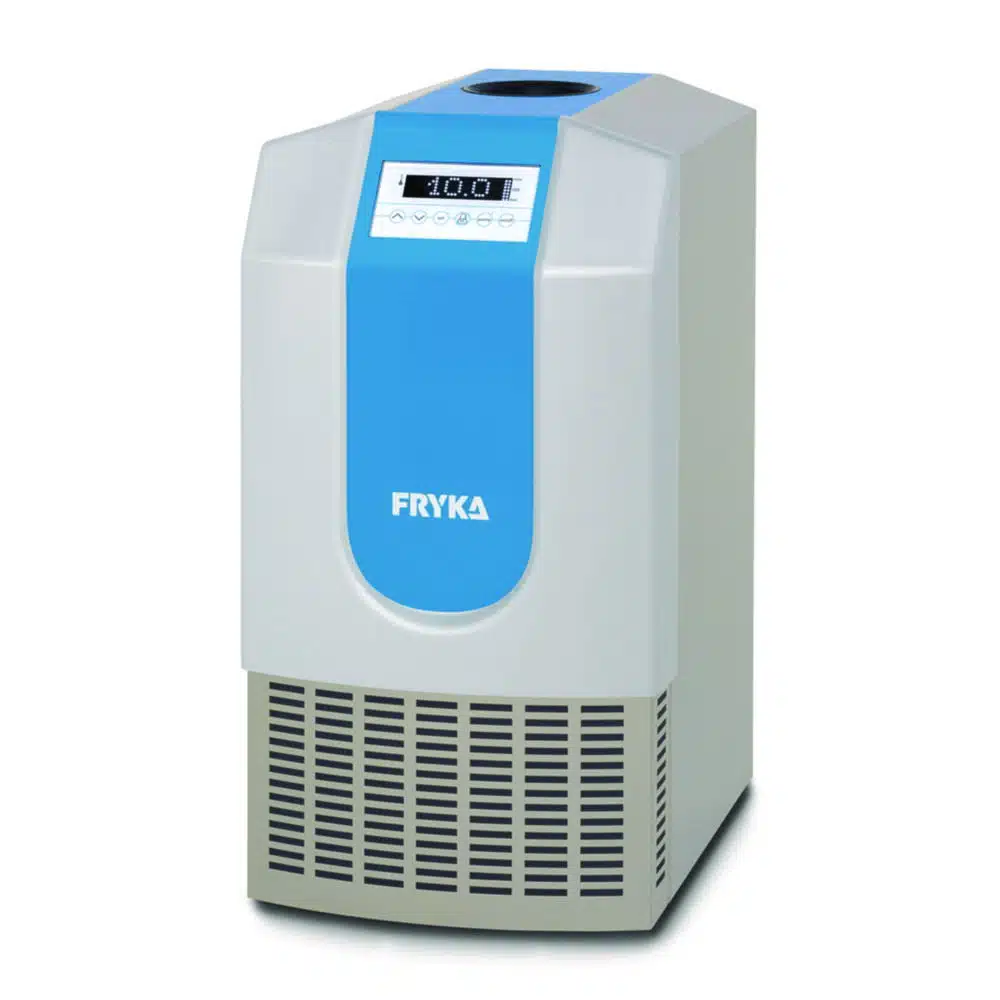

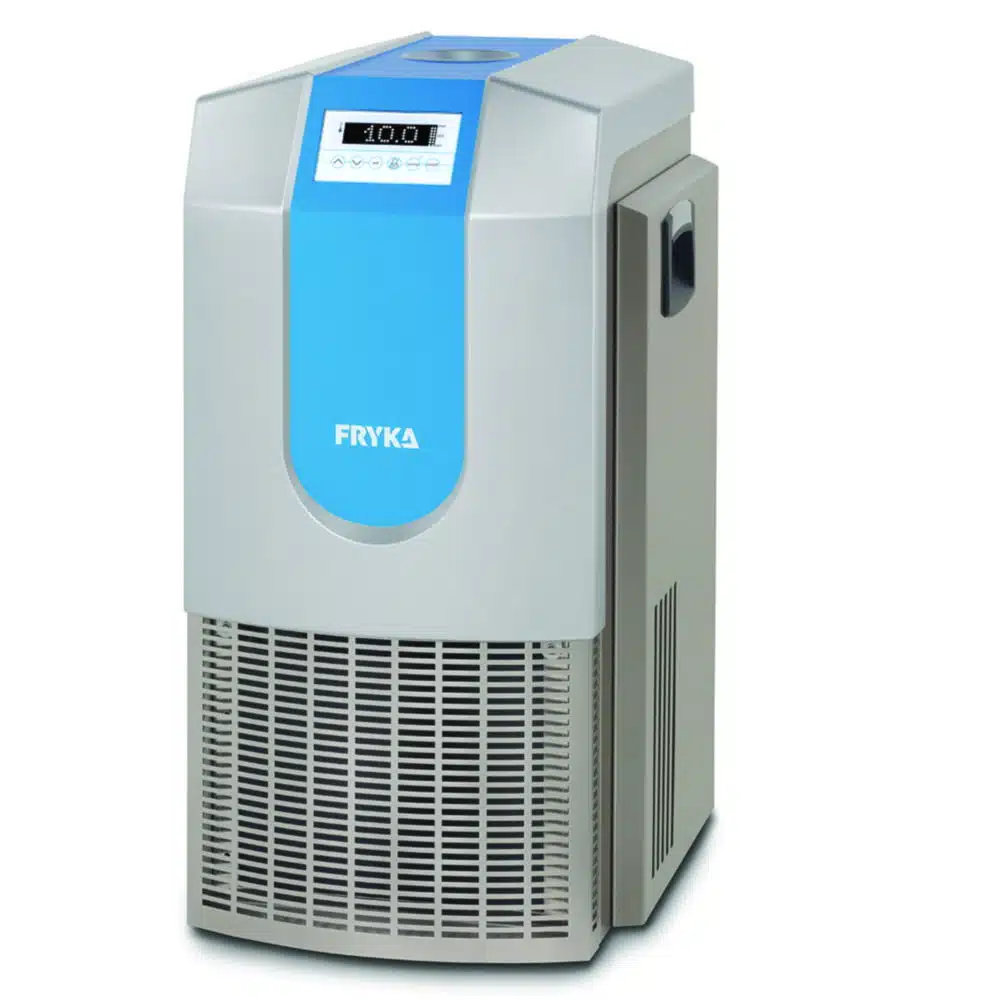

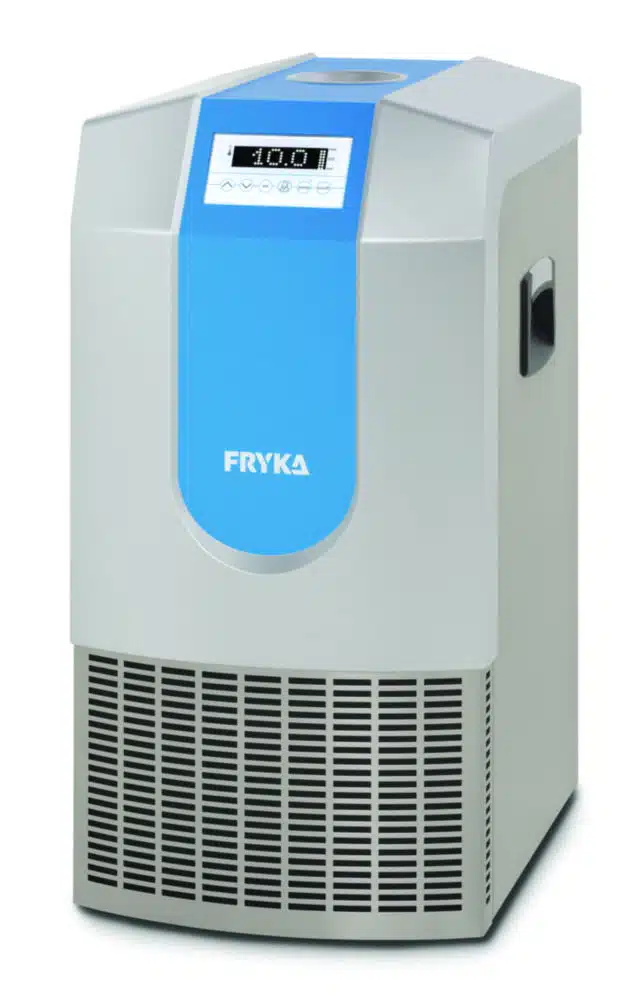

Recirculating chiller ProChiller ULK N

Manufacturer: Fryka-Kältetechnik GmbH

per unit / excl. VAT€ 3,883.95 - € 6,548.85

Type

ULK 1002 N
ULK 2002 N
ULK 602 N

Volume bath

1.5 ... 4 l
2.5 ... 9 l

Temperature stability

±0,5 K (-10 °C)
±1 K (-10 °C)

Max. flow rate

10
12

Max. delivery pressure

0.6 bar
2.9 bar

Cooling capacity at 20 °C

1000 W
2000 W
600 W

Ext. dim. (WxDxH)

310 x 415 x 585 mm
350 x 450 x 680 mm
400 x 450 x 730 mm

Weight

28 kg
39 kg
42 kg

Clear

Delivery and Shipping Article Overview

Item No. 887067

Manufacturer Item No.

Specifications

Temperature: -10 ... 40 °C
Operation: Touchscreen
Refrigerant: R290
Power supply: 230 V, 50 Hz
IP code: IP 20

Product Description

Powerful recirculating chiller for cooling applications and processes in laboratories and industry. Environmentally friendly thanks to natural refrigerant and energy-saving fan with EC technology, which adapts the speed to demand. The integrated filling funnel and drain valve make filling and emptying easier. Self-sealing hose connectors with quick-release coupling ensure leak-free hose changes.

Touchscreen controller with glass screen

Digital display of fill level and pump status

Optical and acoustic alarm

Error messages are displayed in plain text

Freeze-up and thermal overload protection

Pump switch-off in case of low liquid level

No side ventilation grilles enable compact installation

Refrigeration unit: hermetically sealed, air-cooled, low-maintenance

Class I (NFL)

Scope of supply: Recirculating chiller, coolant, elbow hose nozzles Ø 12.7 mm

Article Overview

Recirculating chiller ProChiller ULK N

SKU	Type	Volume bath	Temperature stability	Max. flow rate	Max. delivery pressure	Cooling capacity at 20 °C	Ext. dim. (WxDxH)	Weight	Name	Price	QuantitySelect all
6493734	ULK 602 N	1.5 ... 4 l	±0,5 K (-10 °C)	10	0.6 bar	600 W	310 x 415 x 585 mm	28 kg	Recirculating chiller ProChiller ULK N - ULK 602 N, 1.5 ... 4 l, ±0,5 K ( 10 °C), 10, 0.6 bar, 600 W, 310 x 415 x 585 mm, 28 kg	per unit / excl. VAT€ 3,883.95	Recirculating chiller ProChiller ULK N quantity
6493735	ULK 1002 N	2.5 ... 9 l	±0,5 K (-10 °C)	12	2.9 bar	1000 W	350 x 450 x 680 mm	39 kg	Recirculating chiller ProChiller ULK N - ULK 1002 N, 2.5 ... 9 l, ±0,5 K ( 10 °C), 12, 2.9 bar, 1000 W, 350 x 450 x 680 mm, 39 kg	per unit / excl. VAT€ 4,592.70	Recirculating chiller ProChiller ULK N quantity
6493736	ULK 2002 N	2.5 ... 9 l	±1 K (-10 °C)	12	2.9 bar	2000 W	400 x 450 x 730 mm	42 kg	Recirculating chiller ProChiller ULK N - ULK 2002 N, 2.5 ... 9 l, ±1 K ( 10 °C), 12, 2.9 bar, 2000 W, 400 x 450 x 730 mm, 42 kg	per unit / excl. VAT€ 6,548.85	Recirculating chiller ProChiller ULK N quantity
