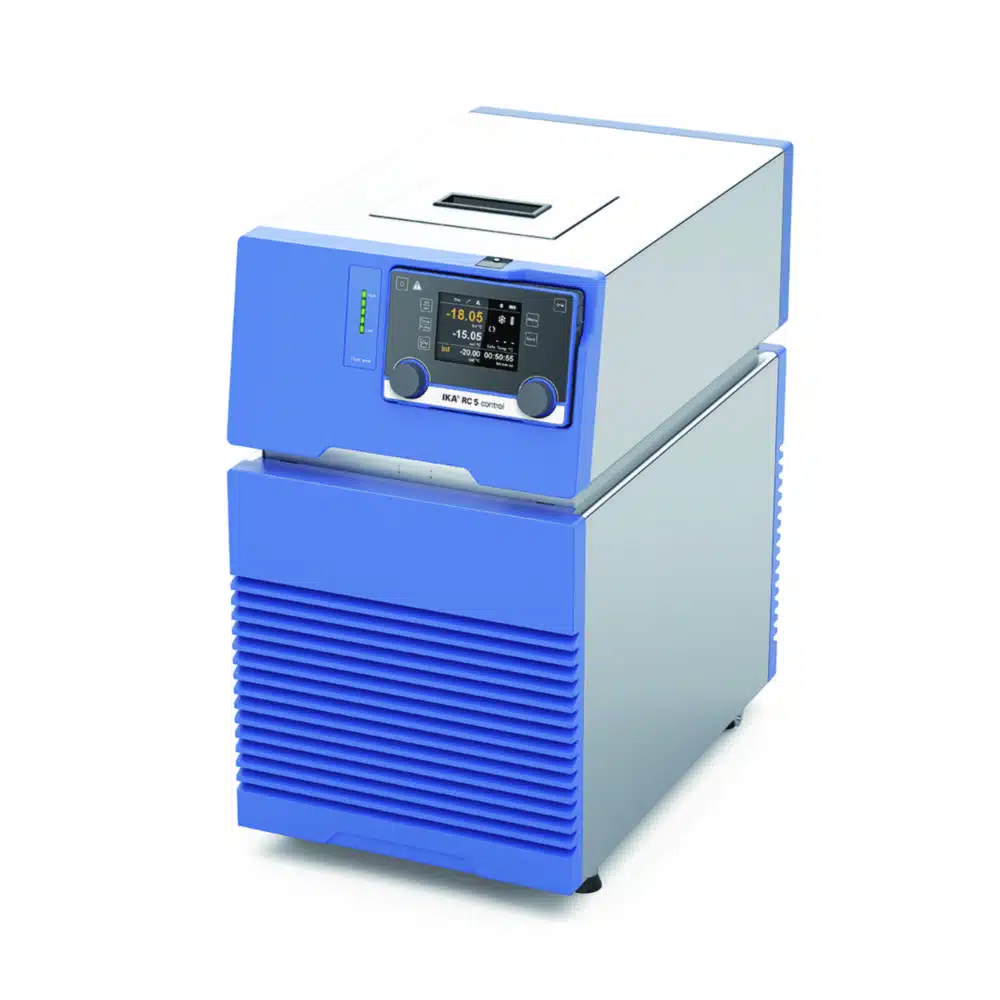

Circulator baths RC 5 control

• Type: RC 5 control
• Volume bath: 5.0 ... 7.0 l
• Temperature: RT ... -30 °C
• Temperature stability: 0,1 K
• Max. delivery pressure: 0.61 bar
• Max. suction pressure: 0.45 bar
• Type of display: TFT
• Programmable: Yes
• Refrigerant: R290
• Cooling capacity at 20 °C: 1400 W
• Ext. dim. (WxDxH): 310 x 490 x 546 mm
• Power supply: 230 V, 50/60 Hz
• Weight: 37.5 kg
• IP code: IP 21

Powerful recirculating chiller, designed for external cooling applications up to -30 °C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. Due to the excellent temperature stability they can handle even sophisticated applications. The isolated, high-quality bath has an integrated hopper and drain valve, ensuring safe and clean handling of the thermofluid.

• Speed-controlled refrigeration system (PEEK)
• Speed-controlled pump (PEEK)
• Natural thermofluid R290
• Extended operating temperature range until 80°C
• Digital level indicator
• Interfaces: RS 232 and USB
• Remote control via Wireless Controller (WiCo)
• Simplified and automated processes through 10 freely programmable temperature ramps with 10 steps each
• Timer/Counter
• Degassing function
• Connection of magnetic valves possible (Mulit IO)
• Alarm contact (Multi IO)
• Connector for standby contact input (Multi IO)
• Connection for external PT100 temperature sensor (included in delivery)
