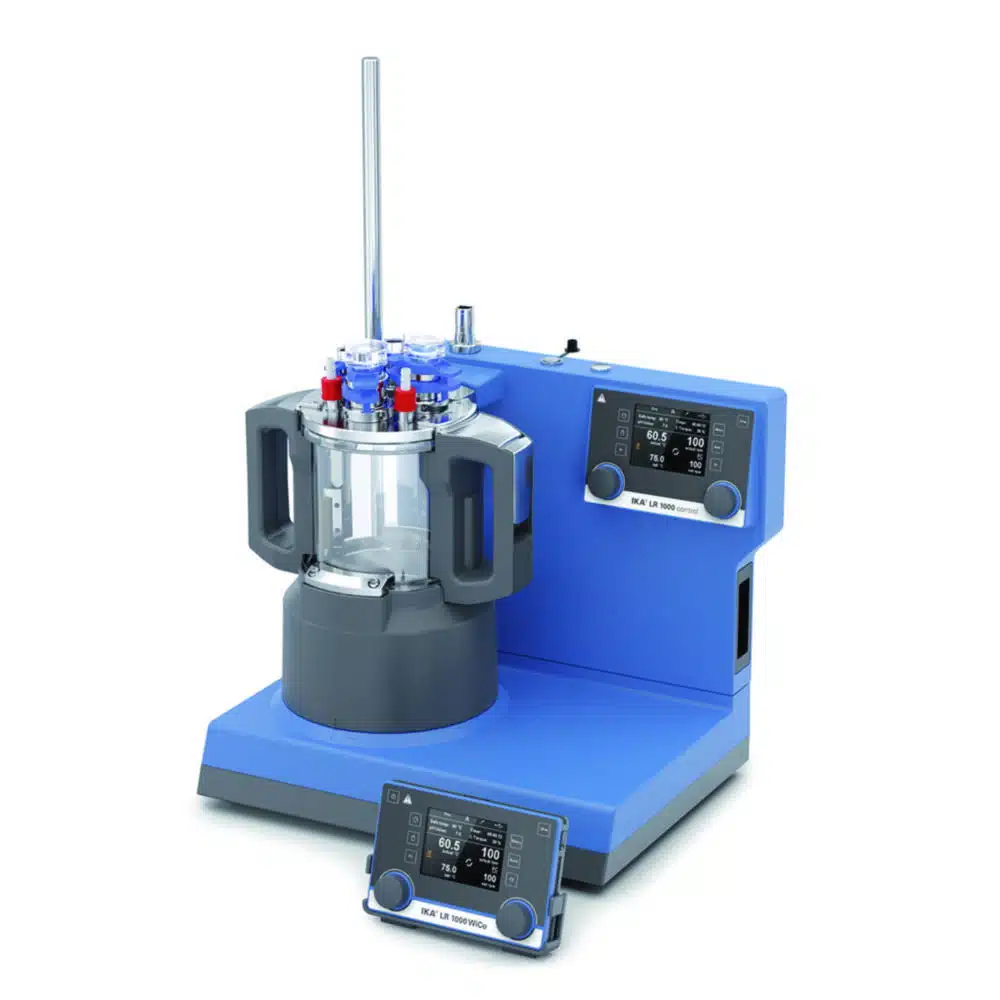

Laboratory reactor LR 1000 control System

• Type: LR 1000 control System
• Working volume: 300 ... 1,000 ml
• Max. temp. medium: 120 °C
• Max. vacuum: 25 mbar
• Max. Viscosity: 100000 mPa·s
• Speed: 10 ... 150 1/min
• Dimensions (WxDxH): 443 x 295 x 360 mm
• Weight: 16 kg
• Heating capacity: 1000 W
• Power supply: 230 V, 50/60 Hz
• IP code: IP 21

Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC. By using the optional laboratory software labworldsoft® it is possible to even control the reactor via PC and make further settings. In addition, a control valve connection to attach an optional magnetic valve for program-based cooling water control is integrated.

Scope of supply: Basic device, laboratory reactor vessel LR 1000.3, anchor stirrer LR 1000.10, sensor receptacle LR 1000.62, temperature sensor PT 100.30, flow breaker, support rod, 2 hose connectors, USB cable
