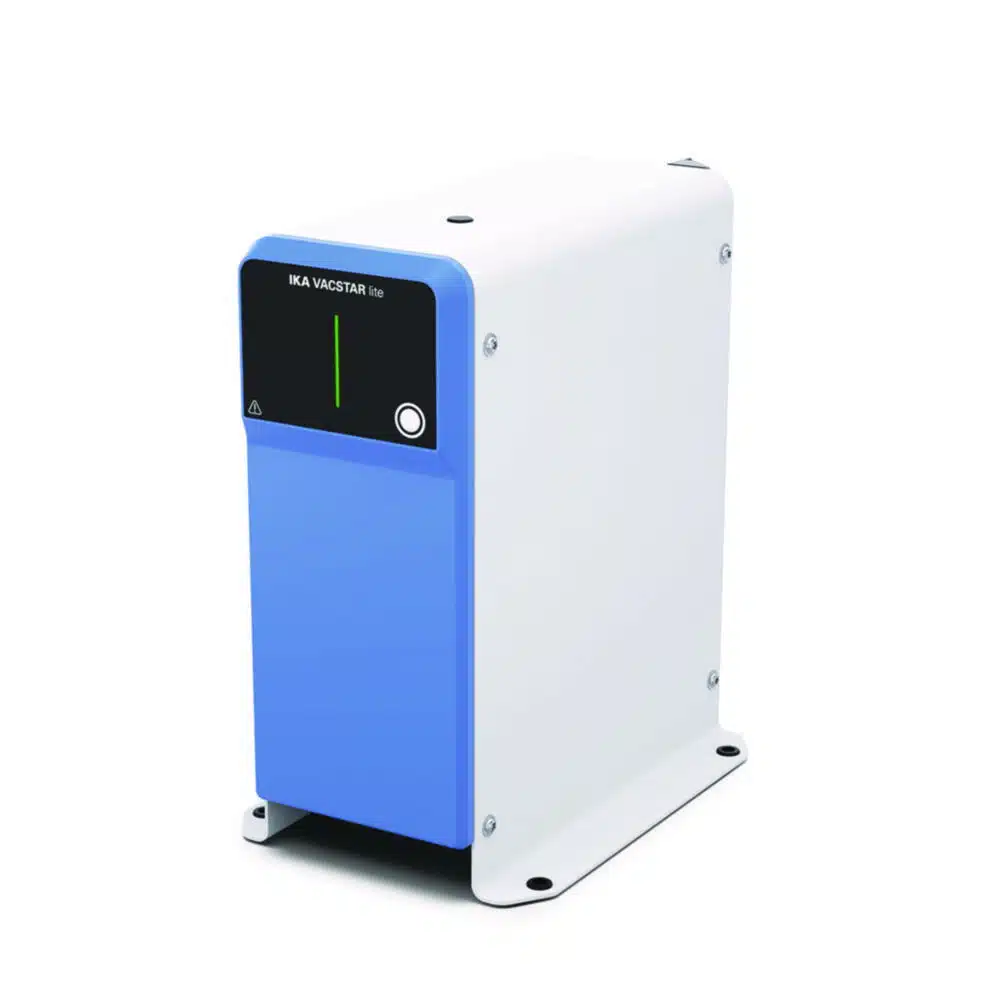

Diaphragm vacuum pump VACSTAR lite

• Type: VACSTAR lite
• Flow rate: 1 m³/h
• Ultimate vacuum: 9 mbar
• No. of stages: 2
• Connection suction side: DN 8
• Connection pressure side: DN 8
• Noise level: 54 db(A)
• Dimensions (WxDxH): 115 x 280 x 292 mm
• Weight: 8.5 kg
• Rated capacity: 120 W
• Power supply: 100 ... 240 V, 50/60 Hz
• IP code: IP 20

Speed-controlled, 2-cylinder vacuum pump for universal use in dry and oil-free vacuum applications. Equipped with chemically resistant diaphragms, this pump is ideal for almost all standard vacuum applications in the laboratory. Optimised for use with rotary evaporators, laboratory reactors, temperature chambers, centrifuges, as well as classic Schlenk line and standard filtration systems, VACSTAR lite offers high operating efficiency and flexibility. The robust design ensures long-term reliability with minimal maintenance and makes it an ideal peripheral device for standard laboratory processes.
