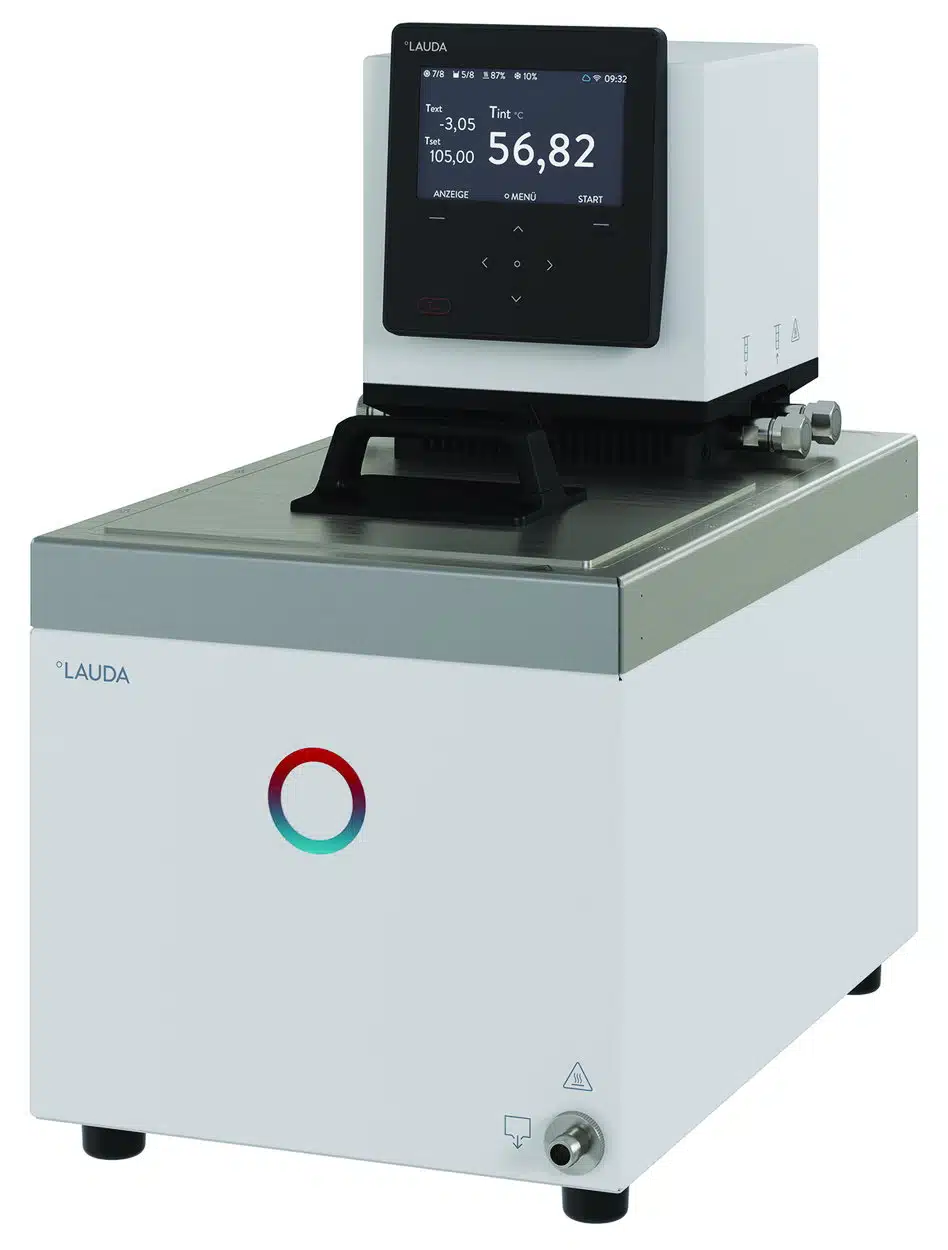

Heating thermostat with ball bearing Universa MAX

Manufacturer: Lauda Dr.R.Wobser GmbH & Co.KG

per unit / excl. VAT€ 5,250.00 - € 6,350.00

Type

U 12 M
U 40 M
U 8 M

Volume bath

29 ... 42 l
5.8 ... 8.5 l
8.5 ... 13 l

Temperature

65 ... 300 °C
70 ... 300 °C

Opening (WxD)

150 x 150 mm
200 x 200 mm
300 x 600 mm

Ext. dim. (WxDxH)

230 x 400 x 497 mm
280 x 450 x 497 mm
380 x 850 x 499 mm

Weight

14.5 kg
18 kg
29 kg

Clear

Delivery and Shipping Article Overview

Heating thermostat with ball bearing Universa MAX

Item No. 917577

Manufacturer Item No.

Specifications

Material bath: Stainless steel
Temperature stability: ±0,01 K
Max. flow rate: 25
Max. suction capacity: 23 l/min
Max. delivery pressure: 0.7 bar
Max. suction pressure: 0.4 bar
Type of display: TFT
Programmable: Yes
With lid: No
Heating capacity: 3.7 kW
Bath depth: 200 mm
Power supply: 200 ... 240 V, 50/60 Hz
Plug type: CEE
IP code: IP 21

Product Description

The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The version with a ball-bearing pump guarantees safe operation with highly viscous and dense temperature control fluids, as well as with impurities in the temperature control bath. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

Powerful pressure-suction pump with eight selectable performance levels

Front switch on the control head for adjusting the pump output during operation

Colour 5″ TFT display with progression graph

Clear menu navigation in six languages and clear operating status icons

Integrated Ethernet and USB interface

Interface for an external Pt100 temperature probe

With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control

Effective over- and under-level protection

Adjustable overtemperature protection with acoustic alarm

Automatic system diagnostics at start-up with alarm and error message display

Smart temperature control media management with automatic limit value adjustment

Tmax button allows direct access to overtemperature protection setting

Insulated stainless steel bath with drain tap

Pump connection M16x1

Safety class III/FL

Article Overview

Heating thermostat with ball bearing Universa MAX

SKU	Type	Volume bath	Temperature	Opening (WxD)	Ext. dim. (WxDxH)	Weight	Name	Price	QuantitySelect all
4713315	U 8 M	5.8 ... 8.5 l	70 ... 300 °C	150 x 150 mm	230 x 400 x 497 mm	14.5 kg	Heating thermostat with ball bearing Universa MAX - U 8 M, 5.8 ... 8.5 l, 70 ... 300 °C, 150 x 150 mm, 230 x 400 x 497 mm, 14.5 kg	per unit / excl. VAT€ 5,250.00	Heating thermostat with ball bearing Universa MAX quantity
4713277	U 12 M	8.5 ... 13 l	70 ... 300 °C	200 x 200 mm	280 x 450 x 497 mm	18 kg	Heating thermostat with ball bearing Universa MAX - U 12 M, 8.5 ... 13 l, 70 ... 300 °C, 200 x 200 mm, 280 x 450 x 497 mm, 18 kg	per unit / excl. VAT€ 5,540.00	Heating thermostat with ball bearing Universa MAX quantity
4713301	U 40 M	29 ... 42 l	65 ... 300 °C	300 x 600 mm	380 x 850 x 499 mm	29 kg	Heating thermostat with ball bearing Universa MAX - U 40 M, 29 ... 42 l, 65 ... 300 °C, 300 x 600 mm, 380 x 850 x 499 mm, 29 kg	per unit / excl. VAT€ 6,350.00	Heating thermostat with ball bearing Universa MAX quantity
