Heating thermostat Universa MAX, WLAN capable

Manufacturer: Lauda Dr.R.Wobser GmbH & Co.KG

per unit / excl. VAT€ 5,100.00 - € 5,850.00

Type

U 12 M
U 16 M
U 20 M
U 40 M
U 8 M

Volume bath

11.5 ... 17 l
29 ... 42 l
5.8 ... 8.5 l
8.5 ... 13 l
9.5 ... 22 l

Temperature

65 ... 300 °C
70 ... 300 °C

Max. flow rate

25
32

Max. delivery pressure

0.7 bar
1.1 bar

Opening (WxD)

150 x 150 mm
200 x 200 mm
200 x 300 mm
300 x 600 mm

Bath depth

200 mm
320 mm

Ext. dim. (WxDxH)

230 x 400 x 497 mm
280 x 450 x 497 mm
280 x 450 x 617 mm
280 x 550 x 497 mm
380 x 850 x 499 mm

Weight

14.5 kg
18 kg
20 kg
22.5 kg
29 kg

Clear

Delivery and Shipping Article Overview

Heating thermostat Universa MAX, WLAN capable

Item No. 917568

Manufacturer Item No.

Specifications

Material bath: Stainless steel
Temperature stability: ±0,01 K
Max. suction capacity: 23 l/min
Max. suction pressure: 0.4 bar
Type of display: TFT
Programmable: Yes
With lid: No
Heating capacity: 3.7 kW
Power supply: 200 ... 240 V, 50/60 Hz
Plug type: CEE
IP code: IP 21

Product Description

Integrated WLAN enables easy connection to PC, tablet, and smartphone

Article Overview

Heating thermostat Universa MAX, WLAN capable

SKU	Type	Volume bath	Temperature	Max. flow rate	Max. delivery pressure	Opening (WxD)	Bath depth	Ext. dim. (WxDxH)	Weight	Name	Price	QuantitySelect all

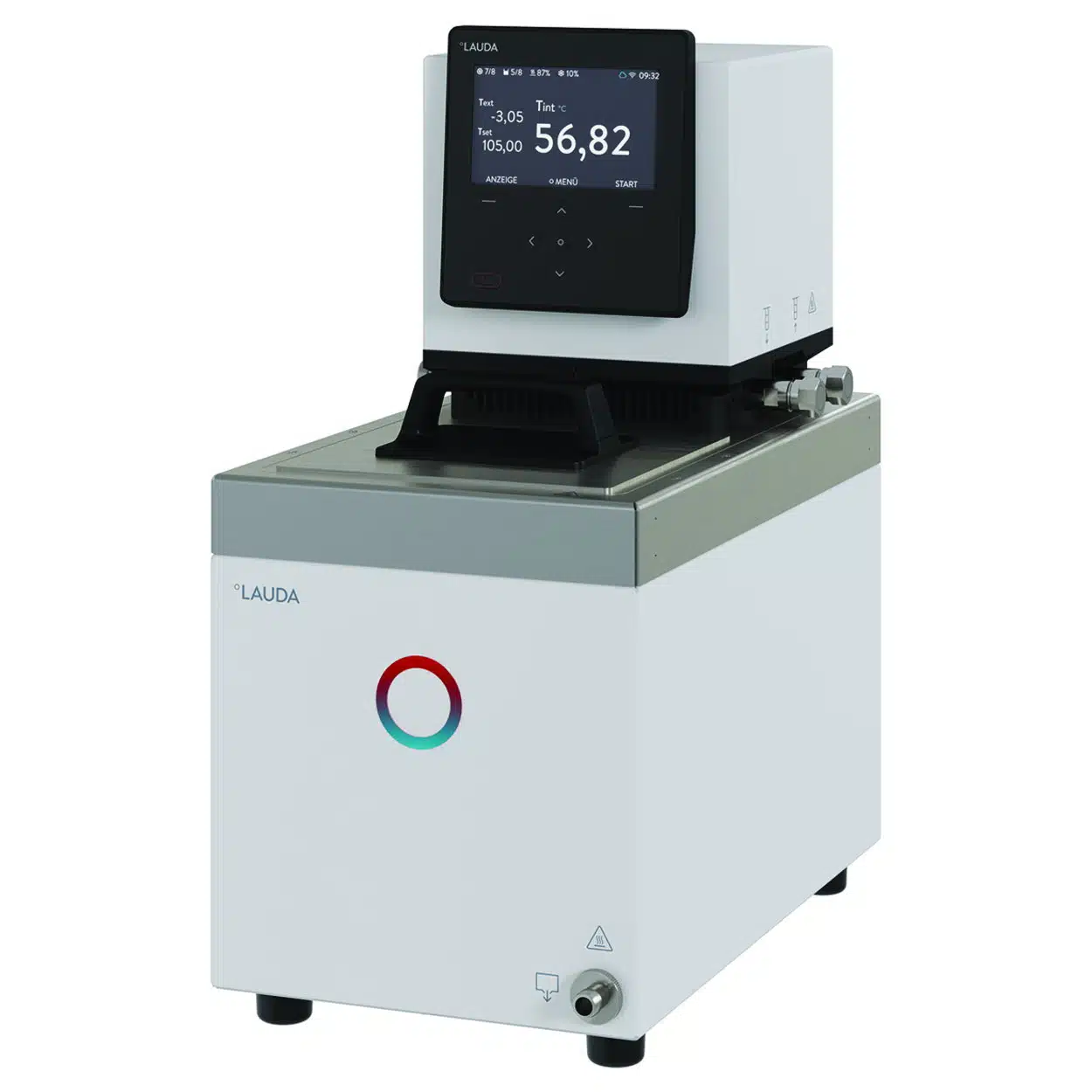

4713316	U 8 M	5.8 ... 8.5 l	70 ... 300 °C	25	0.7 bar	150 x 150 mm	200 mm	230 x 400 x 497 mm	14.5 kg	Heating thermostat Universa MAX, WLAN capable - U 8 M, 5.8 ... 8.5 l, 70 ... 300 °C, 25, 0.7 bar, 150 x 150 mm, 200 mm, 230 x 400 x 497 mm, 14.5 kg	per unit / excl. VAT€ 5,100.00	Heating thermostat Universa MAX, WLAN capable quantity

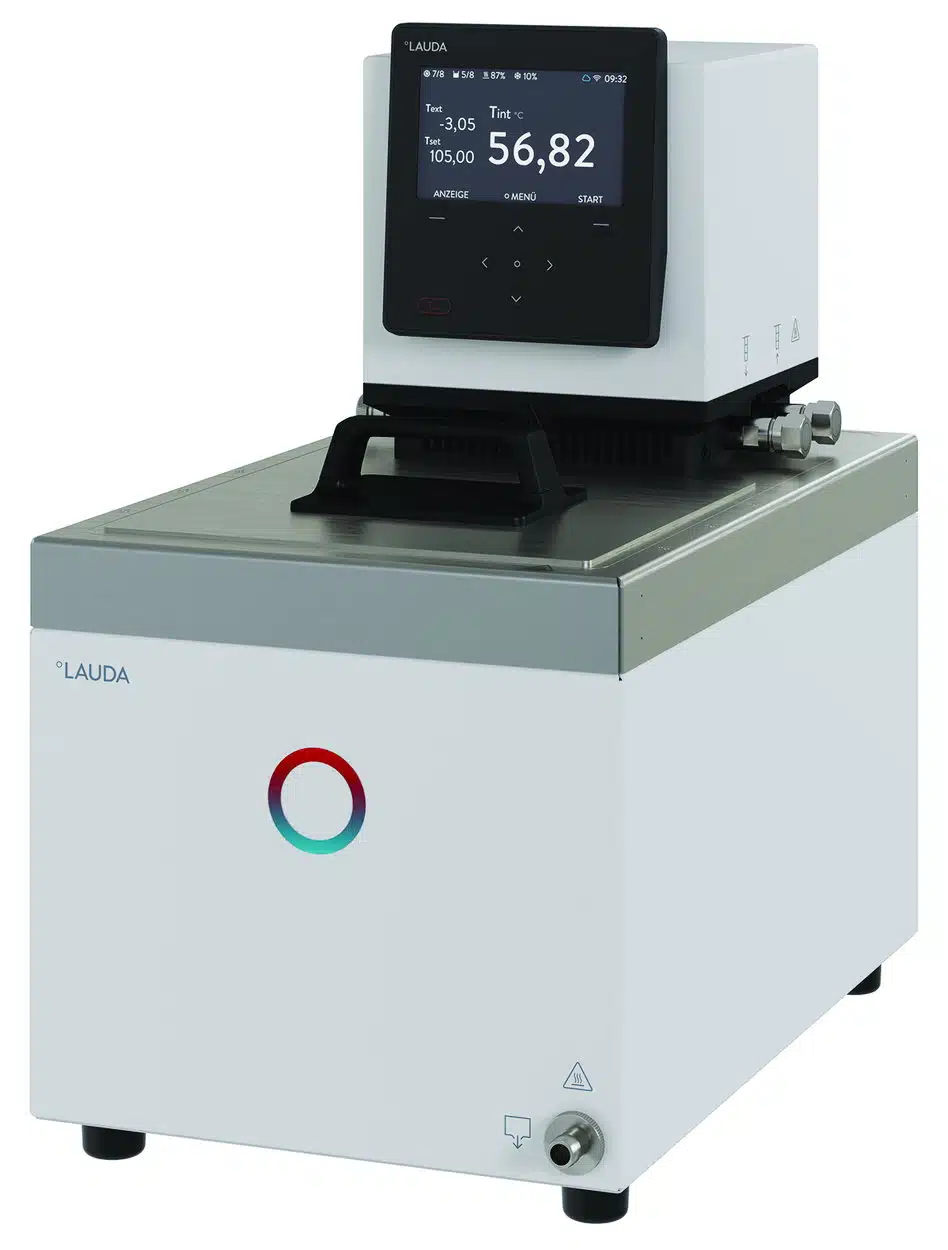

4713278	U 12 M	8.5 ... 13 l	70 ... 300 °C	25	0.7 bar	200 x 200 mm	200 mm	280 x 450 x 497 mm	18 kg	Heating thermostat Universa MAX, WLAN capable - U 12 M, 8.5 ... 13 l, 70 ... 300 °C, 25, 0.7 bar, 200 x 200 mm, 200 mm, 280 x 450 x 497 mm, 18 kg	per unit / excl. VAT€ 5,390.00	Heating thermostat Universa MAX, WLAN capable quantity

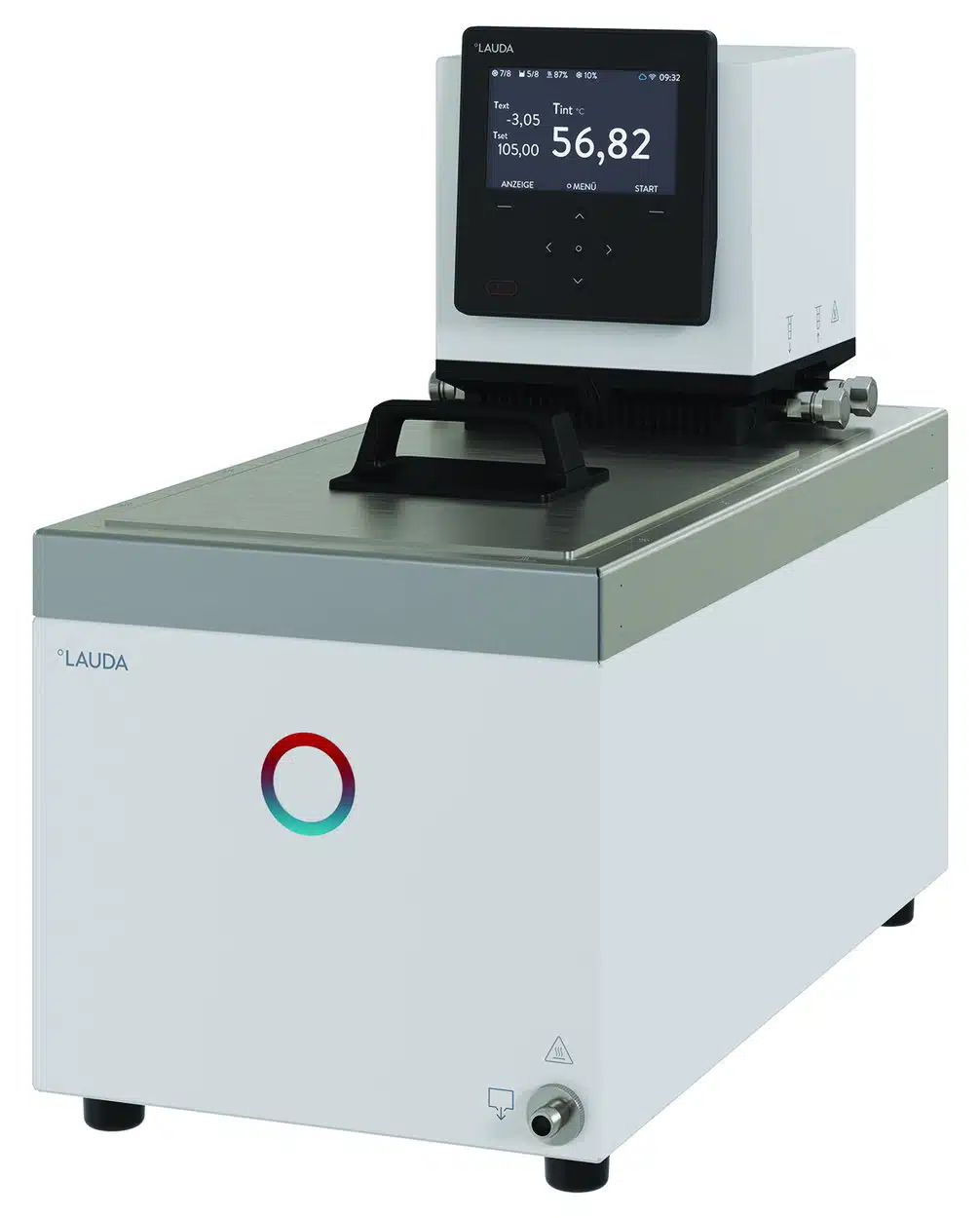

4713284	U 16 M	11.5 ... 17 l	70 ... 300 °C	25	0.7 bar	200 x 300 mm	200 mm	280 x 550 x 497 mm	20 kg	Heating thermostat Universa MAX, WLAN capable - U 16 M, 11.5 ... 17 l, 70 ... 300 °C, 25, 0.7 bar, 200 x 300 mm, 200 mm, 280 x 550 x 497 mm, 20 kg	per unit / excl. VAT€ 5,500.00	Heating thermostat Universa MAX, WLAN capable quantity

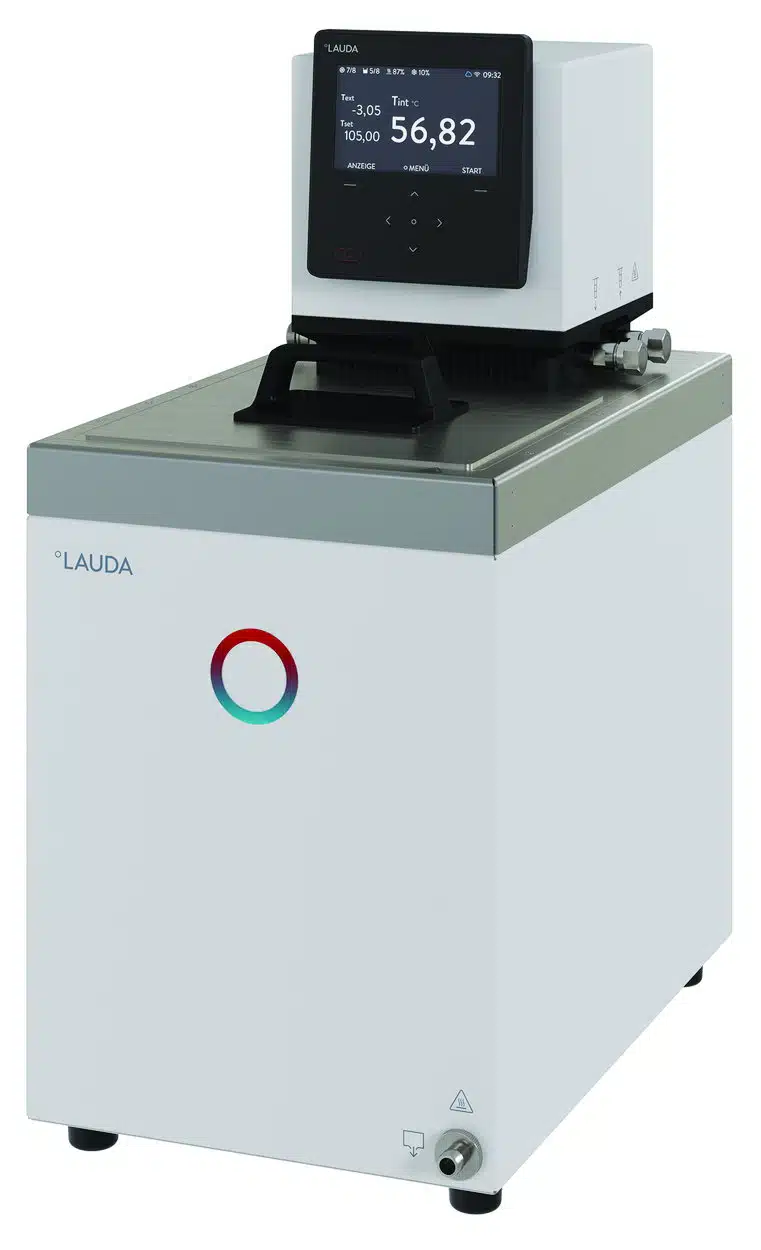

4713294	U 20 M	9.5 ... 22 l	65 ... 300 °C	32	1.1 bar	200 x 200 mm	320 mm	280 x 450 x 617 mm	22.5 kg	Heating thermostat Universa MAX, WLAN capable - U 20 M, 9.5 ... 22 l, 65 ... 300 °C, 32, 1.1 bar, 200 x 200 mm, 320 mm, 280 x 450 x 617 mm, 22.5 kg	per unit / excl. VAT€ 5,600.00	Heating thermostat Universa MAX, WLAN capable quantity

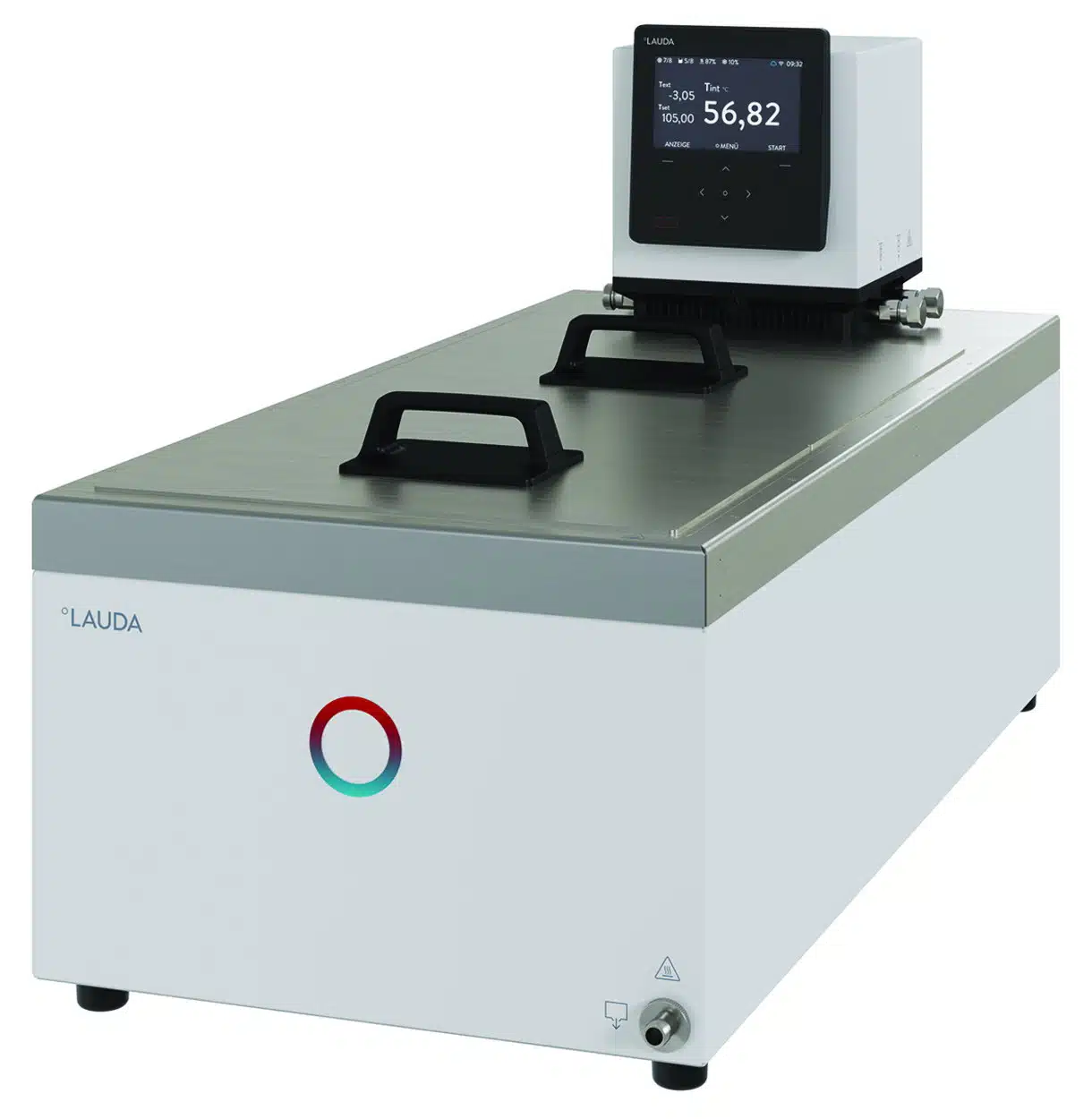

4713302	U 40 M	29 ... 42 l	65 ... 300 °C	25	0.7 bar	300 x 600 mm	200 mm	380 x 850 x 499 mm	29 kg	Heating thermostat Universa MAX, WLAN capable - U 40 M, 29 ... 42 l, 65 ... 300 °C, 25, 0.7 bar, 300 x 600 mm, 200 mm, 380 x 850 x 499 mm, 29 kg	per unit / excl. VAT€ 5,850.00	Heating thermostat Universa MAX, WLAN capable quantity
