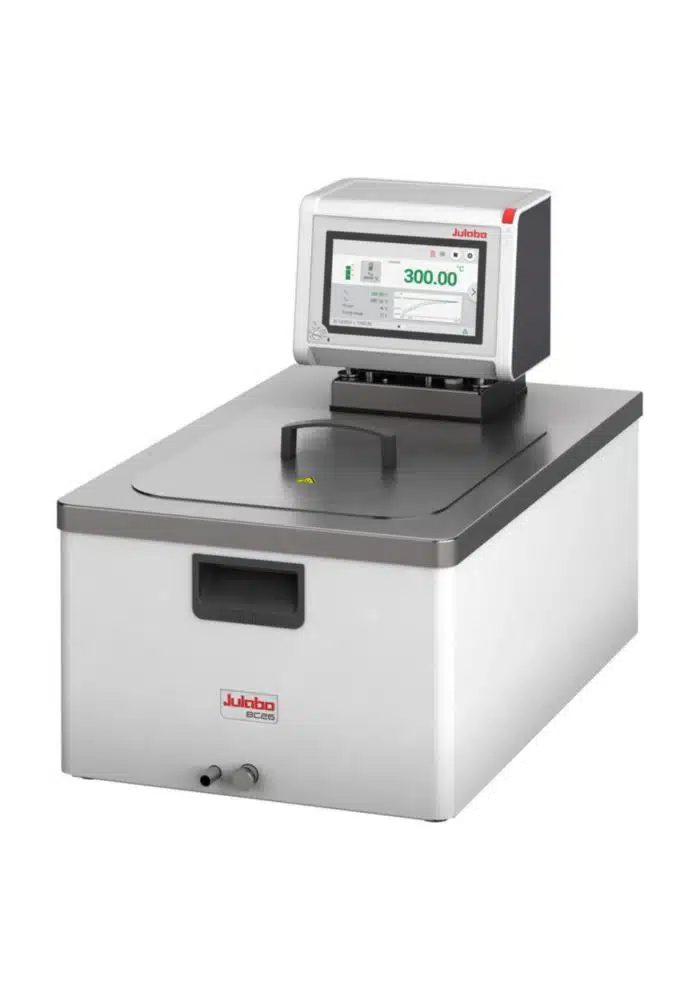

Heating circulator MAGIO MS/MX

Manufacturer: Julabo GmbH

per unit / excl. VAT€ 4,754.67 - € 5,792.09
Delivery and ShippingArticle Overview
Heating circulator MAGIO MS/MX

Item No. 10611

Manufacturer Item No.

Specifications
  • Material bath: Stainless steel
  • Temperature: 20 ... 300 °C
  • Temperature stability: ±0,01 °C
  • Max. delivery pressure: 0.92 bar
  • Max. suction pressure: 0.4 bar
  • Type of display: TFT
  • Programmable: Yes
  • With lid: Yes
  • Power supply: 200 ... 230 V, 50/60 Hz
  • IP code: IP 20
Product Description

For precise temperature control of internal and external applications.

  • Simple control of complex applications

  • Infinitely adjustable, extremely powerful pressure and suction pump

  • Large, high-resolution TFT touch display with multilingual user interface

  • Medium-contacting parts made of stainless steel

  • Integrated programmer

  • External Pt100 connection

  • USB interface

  • RS232 interface

  • Ethernet interface

  • High quality thermal insulation of the bath tanks

  • Integrated drain cock for easy and safe emptying

  • Classification III according to DIN 12876-1

Article Overview

Heating circulator MAGIO MS/MX

StockImageSKUTypeVolume bathWeightHeating capacityOpening (WxD)Bath depthExt. dim. (WxDxH)NamePriceQuantity
Heating circulator MAGIO MS/MX - MS BC4, 3 ... 4.5 l, 11.1 kg, 2 kW, 130 x 150 mm, 150 mm, 230 x 410 x 420 mm
4678303MS-BC43 ... 4.5 l11.1 kg2 kW130 x 150 mm150 mm230 x 410 x 420 mmHeating circulator MAGIO MS/MX - MS BC4, 3 ... 4.5 l, 11.1 kg, 2 kW, 130 x 150 mm, 150 mm, 230 x 410 x 420 mm
per unit / excl. VAT€ 4,754.67
Heating circulator MAGIO MS/MX - MX BC6, 4.5 ... 6 l, 12.8 kg, 3 kW, 130 x 150 mm, 200 mm, 240 x 440 x 470 mm
4678310MX-BC64.5 ... 6 l12.8 kg3 kW130 x 150 mm200 mm240 x 440 x 470 mmHeating circulator MAGIO MS/MX - MX BC6, 4.5 ... 6 l, 12.8 kg, 3 kW, 130 x 150 mm, 200 mm, 240 x 440 x 470 mm
per unit / excl. VAT€ 5,122.66
Heating circulator MAGIO MS/MX - MX BC12, 8.5 ... 12 l, 14.6 kg, 3 kW, 220 x 150 mm, 200 mm, 330 x 490 x 470 mm
4678311MX-BC128.5 ... 12 l14.6 kg3 kW220 x 150 mm200 mm330 x 490 x 470 mmHeating circulator MAGIO MS/MX - MX BC12, 8.5 ... 12 l, 14.6 kg, 3 kW, 220 x 150 mm, 200 mm, 330 x 490 x 470 mm
per unit / excl. VAT€ 5,402.28
Heating circulator MAGIO MS/MX - MX BC26, 19 ... 26 l, 21.4 kg, 3 kW, 260 x 350 mm, 200 mm, 390 x 620 x 480 mm
4678312MX-BC2619 ... 26 l21.4 kg3 kW260 x 350 mm200 mm390 x 620 x 480 mmHeating circulator MAGIO MS/MX - MX BC26, 19 ... 26 l, 21.4 kg, 3 kW, 260 x 350 mm, 200 mm, 390 x 620 x 480 mm
per unit / excl. VAT€ 5,792.09
