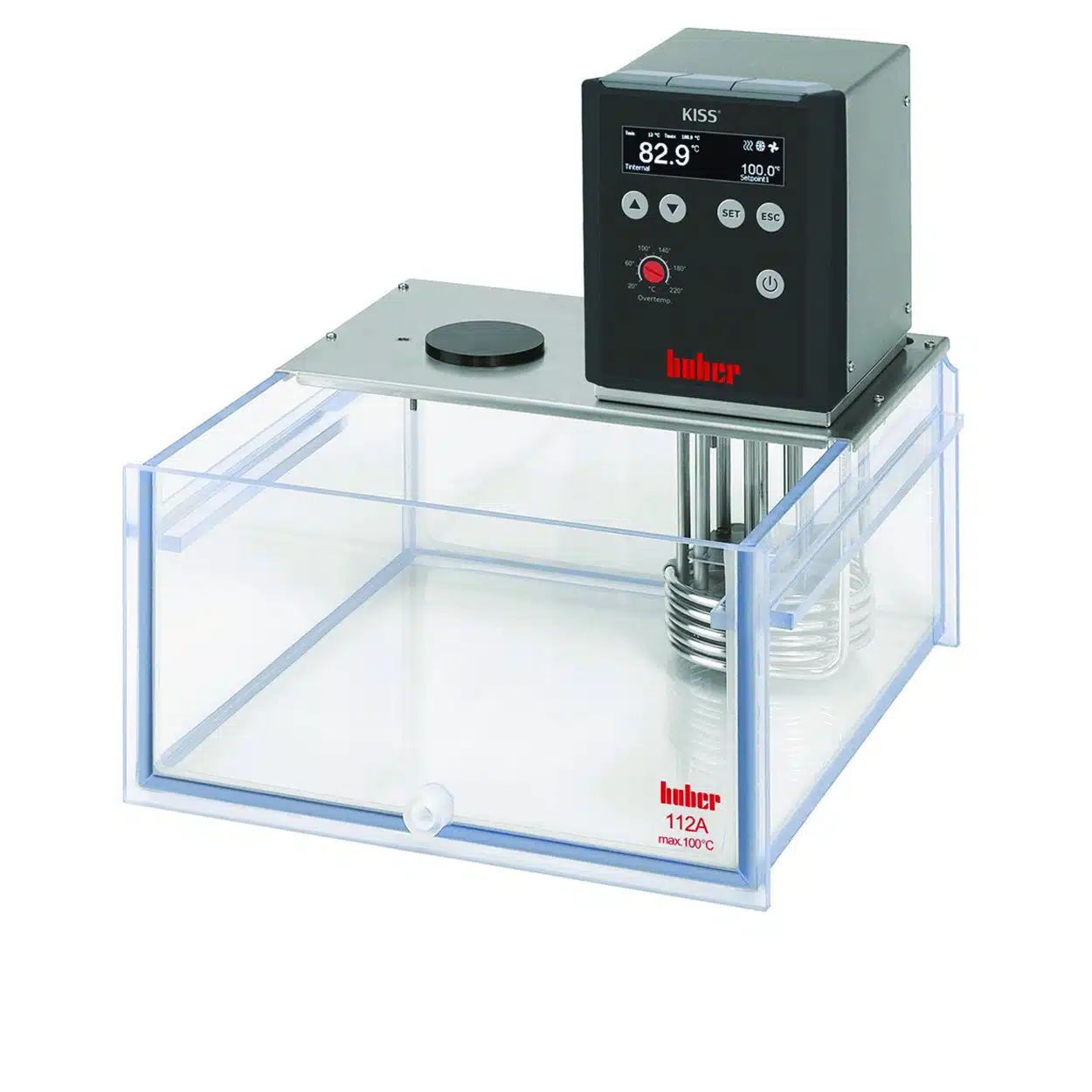

Heating bath thermostats KISS, with polycarbonate bath

Manufacturer: Peter Huber Kältemaschinenbau

per unit / excl. VAT€ 1,589.63 - € 1,923.75

Type

KISS 106A
KISS 108A
KISS 110A
KISS 112A
KISS 118A

Volume bath

12 l
18 l
4.4 l
6 l
7.5 l

Opening (WxD)

130 x 110 mm
130 x 210 mm
130 x 310 mm
275 x 161 mm
275 x 321 mm

Ext. dim. (WxDxH)

147 x 307 x 330 mm
147 x 407 x 330 mm
147 x 507 x 330 mm
333 x 360 x 335 mm
333 x 520 x 335 mm

Weight

5 kg
6 kg
8 kg

Clear

Delivery and Shipping Article Overview

Heating bath thermostats KISS, with polycarbonate bath

Item No. 947349

Manufacturer Item No.

Specifications

Material bath: PC
Temperature: 25 ... 100 °C
Temperature stability: ±0,05 K
Max. flow rate: 14
Max. suction capacity: 10.5 l/min
Max. delivery pressure: 0.25 bar
Max. suction pressure: 0.17 bar
Type of display: OLED
Heating capacity: 2.1 kW
Bath depth: 150 mm
Power supply: 200 ... 240 V, 50/60 Hz
IP code: IP 20

Product Description

The transparent polycarbonate baths are suitable for temperatures up to 100 °C. All models come with a KISS immersion circulator mounted on a bath bridge. With a pump adapter, the combinations can be used for both externally closed and externally open (with optional level control) temperature applications. The devices are equipped with overtemperature and low level protection.

Powerful pressure/suction pump

Large, bright OLED display

Simple operation with menu navigation

Simultaneous display of setpoint, actual temperature, Tmin, Tmax

Status displays for pump, cooling, and heating

RS232 and USB interface

Autostart function for power failure

Safety class III (FL) acc. to DIN 12876

Article Overview

Heating bath thermostats KISS, with polycarbonate bath

SKU	Type	Volume bath	Opening (WxD)	Ext. dim. (WxDxH)	Weight	Name	Price	QuantitySelect all
6272334	KISS 106A	4.4 l	130 x 110 mm	147 x 307 x 330 mm	5 kg	Heating bath thermostats KISS, with polycarbonate bath - KISS 106A, 4.4 l, 130 x 110 mm, 147 x 307 x 330 mm, 5 kg	per unit / excl. VAT€ 1,589.63	Heating bath thermostats KISS, with polycarbonate bath quantity
6272335	KISS 108A	6 l	130 x 210 mm	147 x 407 x 330 mm	6 kg	Heating bath thermostats KISS, with polycarbonate bath - KISS 108A, 6 l, 130 x 210 mm, 147 x 407 x 330 mm, 6 kg	per unit / excl. VAT€ 1,620.00	Heating bath thermostats KISS, with polycarbonate bath quantity
6272336	KISS 110A	7.5 l	130 x 310 mm	147 x 507 x 330 mm	6 kg	Heating bath thermostats KISS, with polycarbonate bath - KISS 110A, 7.5 l, 130 x 310 mm, 147 x 507 x 330 mm, 6 kg	per unit / excl. VAT€ 1,650.38	Heating bath thermostats KISS, with polycarbonate bath quantity
6272337	KISS 112A	12 l	275 x 161 mm	333 x 360 x 335 mm	8 kg	Heating bath thermostats KISS, with polycarbonate bath - KISS 112A, 12 l, 275 x 161 mm, 333 x 360 x 335 mm, 8 kg	per unit / excl. VAT€ 1,863.00	Heating bath thermostats KISS, with polycarbonate bath quantity
6272338	KISS 118A	18 l	275 x 321 mm	333 x 520 x 335 mm	8 kg	Heating bath thermostats KISS, with polycarbonate bath - KISS 118A, 18 l, 275 x 321 mm, 333 x 520 x 335 mm, 8 kg	per unit / excl. VAT€ 1,923.75	Heating bath thermostats KISS, with polycarbonate bath quantity
