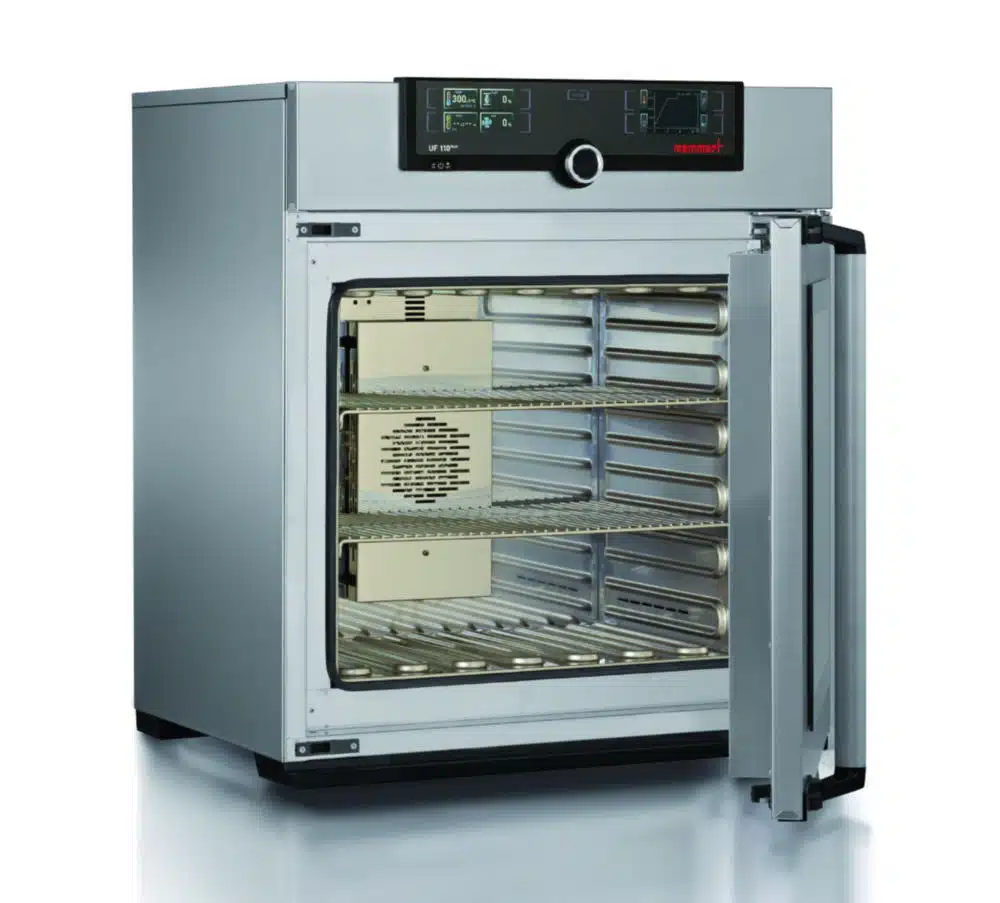

Universal ovens UNplus

Manufacturer: Memmert GmbH + Co. KG

per unit / excl. VAT€ 2,197.00 - € 7,560.00

Type

UN110plus
UN160plus
UN260plus
UN30plus
UN450plus
UN55plus
UN750plus
UN75plus

Nominal capacity

108 l
161 l
256 l
32 l
449 l
53 l
74 l
749 l

Max. no. of inserts

Ext. dim. (WxDxH)

1,224 x 784 x 1,247 mm
1,224 x 784 x 1,720 mm
585 x 434 x 704 mm
585 x 514 x 784 mm
585 x 514 x 944 mm
745 x 584 x 1,104 mm
745 x 584 x 864 mm
824 x 684 x 1,183 mm

Int. Dim. (WxDxH)

1,040 x 600 x 1,200 mm
1,040 x 600 x 720 mm
400 x 250 x 320 mm
400 x 330 x 400 mm
400 x 330 x 560 mm
560 x 400 x 480 mm
560 x 400 x 720 mm
640 x 500 x 800 mm

Weight

110 kg
161 kg
217 kg
45 kg
57 kg
66 kg
74 kg
96 kg

Rated capacity

1600 W
2000 W
2500 W
2800 W
3200 W
3400 W
5800 W
7000 W

Power supply

230 V, 50/60 Hz
400 V, 50/60 Hz

Clear

Delivery and Shipping Article Overview

Item No. 791789

Manufacturer Item No.

Specifications

Temperature: RT+5 ... 300 °C
Plug type: EU

Product Description

Natural convection

TwinDISPLAY: ControlCOCKPIT with two colour displays
You can find a detailed description of the “TwinDISPLAY” model at www.memmert.com

Article Overview

Universal ovens UNplus

SKU	Type	Nominal capacity	Max. no. of inserts	Ext. dim. (WxDxH)	Int. Dim. (WxDxH)	Weight	Rated capacity	Power supply	Name	Price	QuantitySelect all
9869689	UN30plus	32 l	3	585 x 434 x 704 mm	400 x 250 x 320 mm	45 kg	1600 W	230 V, 50/60 Hz	Universal ovens UNplus - UN30plus, 32 l, 3, 585 x 434 x 704 mm, 400 x 250 x 320 mm, 45 kg, 1600 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,197.00	Universal ovens UNplus quantity
9869690	UN55plus	53 l	4	585 x 514 x 784 mm	400 x 330 x 400 mm	57 kg	2000 W	230 V, 50/60 Hz	Universal ovens UNplus - UN55plus, 53 l, 4, 585 x 514 x 784 mm, 400 x 330 x 400 mm, 57 kg, 2000 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,397.00	Universal ovens UNplus quantity
9869691	UN75plus	74 l	6	585 x 514 x 944 mm	400 x 330 x 560 mm	66 kg	2500 W	230 V, 50/60 Hz	Universal ovens UNplus - UN75plus, 74 l, 6, 585 x 514 x 944 mm, 400 x 330 x 560 mm, 66 kg, 2500 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,668.00	Universal ovens UNplus quantity
9869692	UN110plus	108 l	5	745 x 584 x 864 mm	560 x 400 x 480 mm	74 kg	2800 W	230 V, 50/60 Hz	Universal ovens UNplus - UN110plus, 108 l, 5, 745 x 584 x 864 mm, 560 x 400 x 480 mm, 74 kg, 2800 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 3,058.00	Universal ovens UNplus quantity
9869693	UN160plus	161 l	8	745 x 584 x 1,104 mm	560 x 400 x 720 mm	96 kg	3200 W	230 V, 50/60 Hz	Universal ovens UNplus - UN160plus, 161 l, 8, 745 x 584 x 1,104 mm, 560 x 400 x 720 mm, 96 kg, 3200 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 3,808.00	Universal ovens UNplus quantity
9869694	UN260plus	256 l	9	824 x 684 x 1,183 mm	640 x 500 x 800 mm	110 kg	3400 W	230 V, 50/60 Hz	Universal ovens UNplus - UN260plus, 256 l, 9, 824 x 684 x 1,183 mm, 640 x 500 x 800 mm, 110 kg, 3400 W, 230 V, 50/60 Hz	per unit / excl. VAT€ 4,554.00	Universal ovens UNplus quantity
9869695	UN450plus	449 l	8	1,224 x 784 x 1,247 mm	1,040 x 600 x 720 mm	161 kg	5800 W	400 V, 50/60 Hz	Universal ovens UNplus - UN450plus, 449 l, 8, 1,224 x 784 x 1,247 mm, 1,040 x 600 x 720 mm, 161 kg, 5800 W, 400 V, 50/60 Hz	per unit / excl. VAT€ 5,871.00	Universal ovens UNplus quantity
9869696	UN750plus	749 l	14	1,224 x 784 x 1,720 mm	1,040 x 600 x 1,200 mm	217 kg	7000 W	400 V, 50/60 Hz	Universal ovens UNplus - UN750plus, 749 l, 14, 1,224 x 784 x 1,720 mm, 1,040 x 600 x 1,200 mm, 217 kg, 7000 W, 400 V, 50/60 Hz	per unit / excl. VAT€ 7,560.00	Universal ovens UNplus quantity
