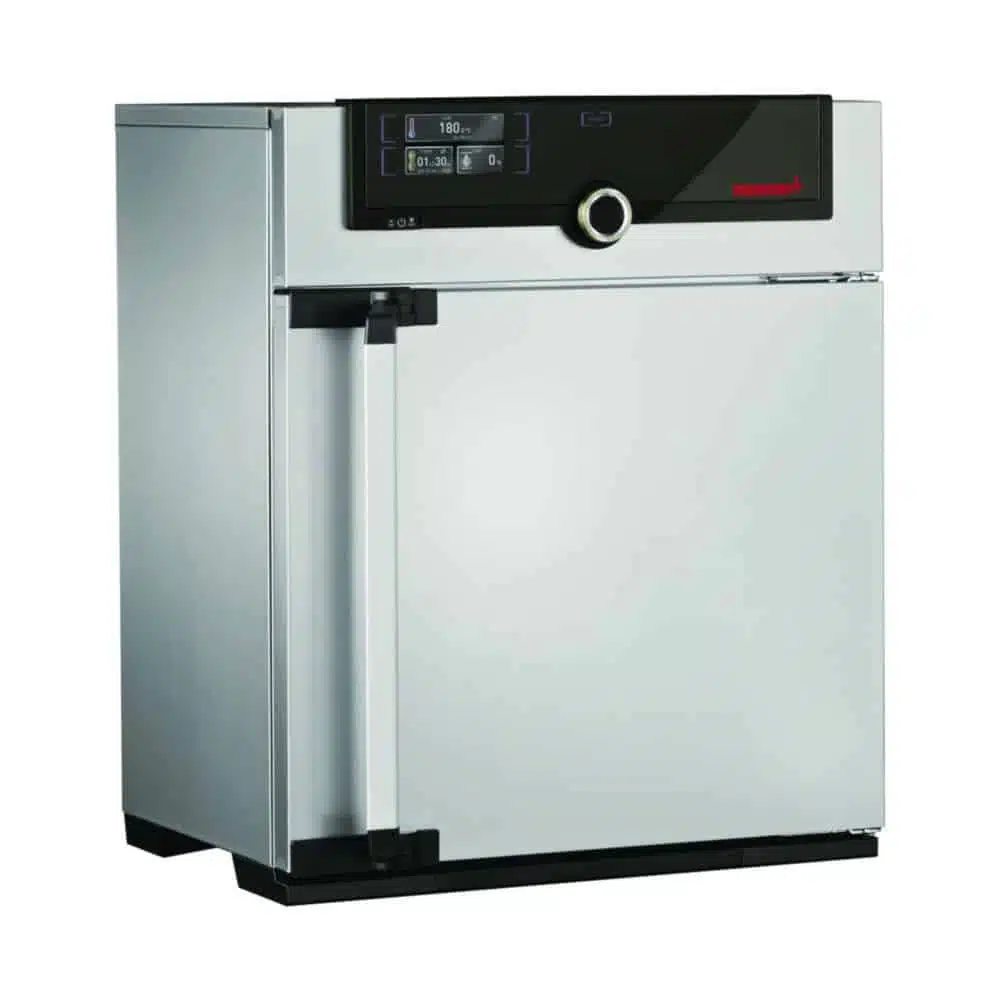

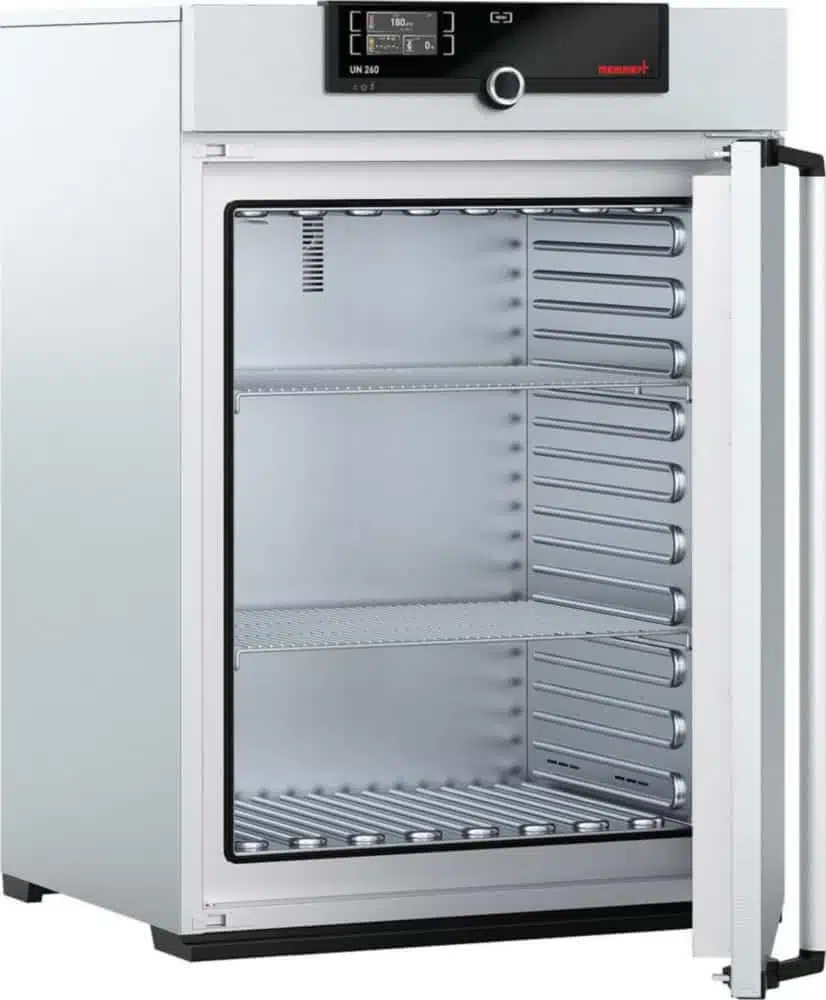

Universal ovens UN

Manufacturer: Memmert GmbH + Co. KG

per unit / excl. VAT€ 1,320.00 - € 6,727.00

Type

UN110
UN160
UN260
UN30
UN450
UN55
UN75
UN750

Nominal capacity

108 l
161 l
256 l
32 l
449 l
53 l
74 l
749 l

Weight

110 kg
161 kg
217 kg
45 kg
57 kg
66 kg
74 kg
96 kg

Max. no. of inserts

14
3
4
5
6
8
9

Int. Dim. (WxDxH)

1,040 x 600 x 1,200 mm
1,040 x 600 x 720 mm
400 x 250 x 320 mm
400 x 330 x 400 mm
400 x 330 x 560 mm
560 x 400 x 480 mm
560 x 400 x 720 mm
640 x 500 x 800 mm

Rated capacity

1600 W
2000 W
2500 W
2800 W
3200 W
3400 W
5800 W
7000 W

Ext. dim. (WxDxH)

1,224 x 784 x 1,247 mm
1,224 x 784 x 1,720 mm
585 x 434 x 704 mm
585 x 514 x 784 mm
585 x 514 x 944 mm
745 x 584 x 1,104 mm
745 x 584 x 864 mm
824 x 684 x 1,183 mm

Power supply

230 V, 50/60 Hz
400 V, 50/60 Hz

Clear

Delivery and Shipping Article Overview

Item No. 791858

Manufacturer Item No.

Specifications

Temperature: RT+5 ... 300 °C

Product Description

Natural convection

SingleDISPLAY: ControlCOCKPIT with one colour display
You can find a detailed description of the “SingleDISPLAY” model at www.memmert.com

Article Overview

Universal ovens UN

SKU	Type	Nominal capacity	Weight	Max. no. of inserts	Int. Dim. (WxDxH)	Rated capacity	Ext. dim. (WxDxH)	Power supply	Name	Price	QuantitySelect all
9869681	UN30	32 l	45 kg	3	400 x 250 x 320 mm	1600 W	585 x 434 x 704 mm	230 V, 50/60 Hz	Universal ovens UN - UN30, 32 l, 45 kg, 3, 400 x 250 x 320 mm, 1600 W, 585 x 434 x 704 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 1,320.00	Universal ovens UN quantity
9869682	UN55	53 l	57 kg	4	400 x 330 x 400 mm	2000 W	585 x 514 x 784 mm	230 V, 50/60 Hz	Universal ovens UN - UN55, 53 l, 57 kg, 4, 400 x 330 x 400 mm, 2000 W, 585 x 514 x 784 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 1,530.00	Universal ovens UN quantity
9869683	UN75	74 l	66 kg	6	400 x 330 x 560 mm	2500 W	585 x 514 x 944 mm	230 V, 50/60 Hz	Universal ovens UN - UN75, 74 l, 66 kg, 6, 400 x 330 x 560 mm, 2500 W, 585 x 514 x 944 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 1,864.00	Universal ovens UN quantity
9869684	UN110	108 l	74 kg	5	560 x 400 x 480 mm	2800 W	745 x 584 x 864 mm	230 V, 50/60 Hz	Universal ovens UN - UN110, 108 l, 74 kg, 5, 560 x 400 x 480 mm, 2800 W, 745 x 584 x 864 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,164.00	Universal ovens UN quantity
9869685	UN160	161 l	96 kg	8	560 x 400 x 720 mm	3200 W	745 x 584 x 1,104 mm	230 V, 50/60 Hz	Universal ovens UN - UN160, 161 l, 96 kg, 8, 560 x 400 x 720 mm, 3200 W, 745 x 584 x 1,104 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,880.00	Universal ovens UN quantity
9869686	UN260	256 l	110 kg	9	640 x 500 x 800 mm	3400 W	824 x 684 x 1,183 mm	230 V, 50/60 Hz	Universal ovens UN - UN260, 256 l, 110 kg, 9, 640 x 500 x 800 mm, 3400 W, 824 x 684 x 1,183 mm, 230 V, 50/60 Hz	per unit / excl. VAT€ 3,812.00	Universal ovens UN quantity
9869687	UN450	449 l	161 kg	8	1,040 x 600 x 720 mm	5800 W	1,224 x 784 x 1,247 mm	400 V, 50/60 Hz	Universal ovens UN - UN450, 449 l, 161 kg, 8, 1,040 x 600 x 720 mm, 5800 W, 1,224 x 784 x 1,247 mm, 400 V, 50/60 Hz	per unit / excl. VAT€ 5,044.00	Universal ovens UN quantity
9869688	UN750	749 l	217 kg	14	1,040 x 600 x 1,200 mm	7000 W	1,224 x 784 x 1,720 mm	400 V, 50/60 Hz	Universal ovens UN - UN750, 749 l, 217 kg, 14, 1,040 x 600 x 1,200 mm, 7000 W, 1,224 x 784 x 1,720 mm, 400 V, 50/60 Hz	per unit / excl. VAT€ 6,727.00	Universal ovens UN quantity
