Rotary evaporator package RV 10 auto pro V-C Complete

• Type: RV 10 auto pro V-C Complete
• Speed: 5 ... 300 1/min
• Temperature: RT ... 180 °C
• Heating capacity: 1300 W
• Ultimate vacuum: 1050 mbar
• Cooling surface: 1600 cm²
• Max. volume bath: 3 l
• Lifting path: 140 mm
• Condenser: Vertical
• Glassware: Coated
• Dimensions (WxDxH): 500 x 440 x 430 mm
• Weight: 21.5 kg
• Power supply: 220 ... 240 V, 50/60 Hz
• IP code: IP 20

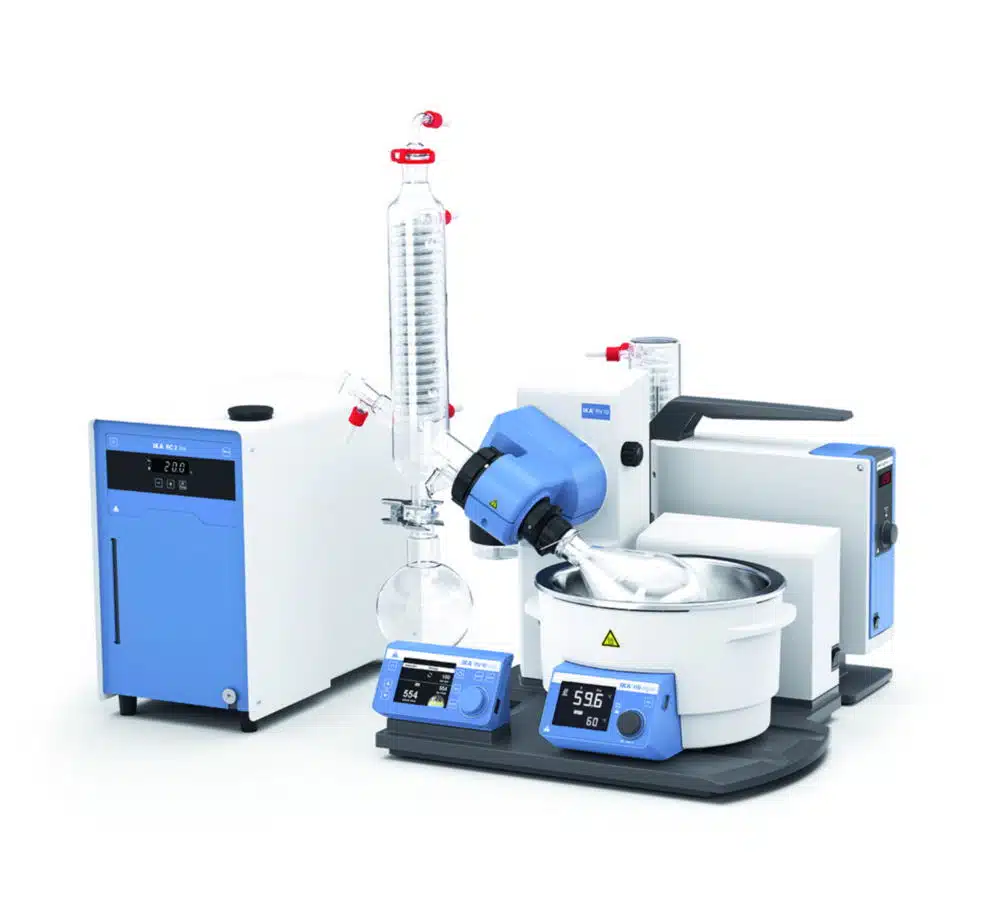

The complete solution for a rotary evaporator setup. In addition to the RV 10 auto rotary evaporator, the package includes the HB digital heating bath, the VACSTAR digital vacuum pump and the RC 2 lite circulation cooler.

• Rotary evaporator RV 10 auto with intuitive TFT colour display and integrated vacuum controller with automatic control of the vacuum and cooling water monitoring
• Vacuum pump VACSTAR digital achieves a minimum vacuum of 2 mbar, is controlled directly by the RV 10 auto drive unit via the data cable supplied
• Circulating cooler RC 2 lite with 400 W cooling capacity and pressure and suction pump with 0.35 bar for simple cooling tasks down to -10 °C

Scope of supply: RV10 control rotary evaporator, RV 10.10 glassware, RV 10.70 vapour feed-through tube, HB digital S099 heating bath, VACSTAR digital vacuum pump, H.SI.8 vacuum hose, VSE 1 condenser, RC 2 lite circulation cooler, H 11 mains cable
