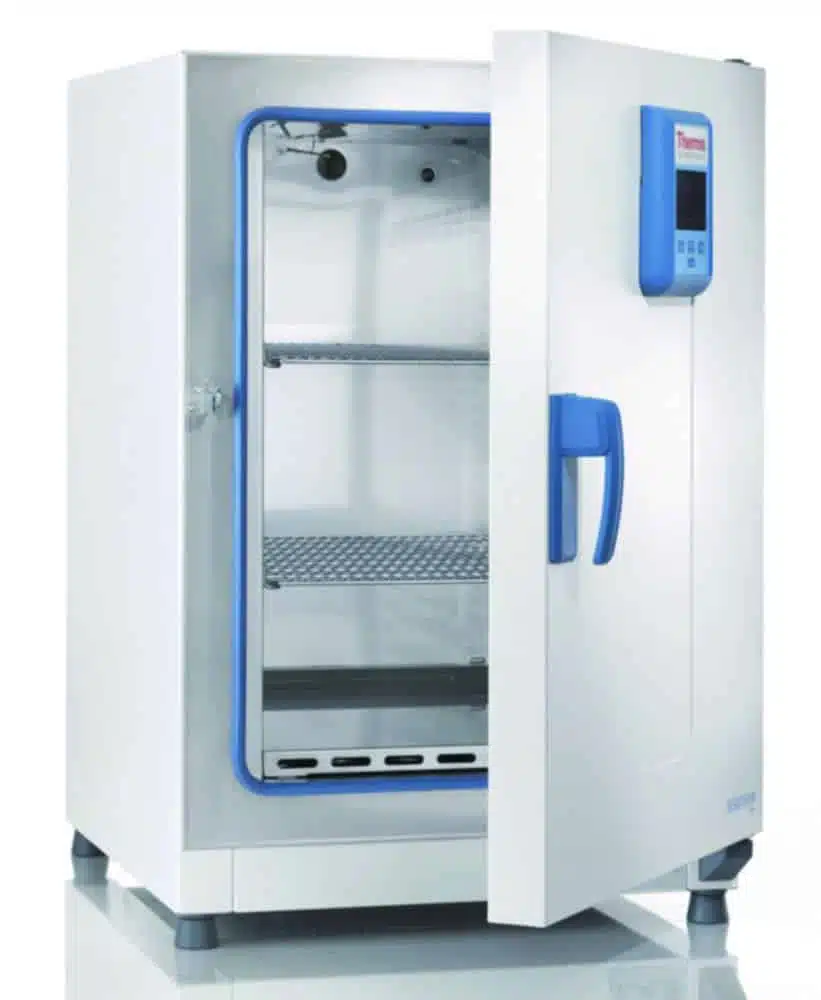

Ovens Heratherm™ Advanced Protocol, with gravity convection

Manufacturer: Thermo Elect.LED GmbH (Kendro)

per unit / excl. VAT€ 2,810.00 - € 3,830.00

Type

OGH100
OGH180
OGH60

Nominal capacity

168 l
61 l
99 l

Max. no. of inserts

13
16
19

Ext. dim. (WxDxH)

530 x 565 x 720 mm
640 x 565 x 820 mm
640 x 738 x 920 mm

Int. Dim. (WxDxH)

328 x 389 x 480 mm
438 x 389 x 580 mm
438 x 564 x 680 mm

Weight

44 kg
55 kg
69 kg

Rated capacity

1800 W
3100 W

Clear

Delivery and Shipping Article Overview

Ovens Heratherm™ Advanced Protocol, with gravity convection

Item No. 791426

Manufacturer Item No.

Specifications

Temperature: RT+10 ... 330 °C
Temperature stability: ±0,3 °C
Power supply: 230 V, 50/60 Hz
IP code: IP 20

Product Description

As well as incorporating all the benefits of Thermo Scientific™ Heratherm™ General Protocol ovens, the Heratherm™ Advanced Protocol range boasts additional features providing even more flexibility, accuracy and dependability.

Sophisticated timer extends the automation options available to the user: turn on or off after a pre-set time, choose between a recurring weekly timer or run oven based on the 24 hour clock

Highest level of temperature uniformity

Exceptionally low energy consumption

Adjustable fan speed for application related airflow

Programmable controller for temperature ramps and dwells (store up to 10 programs with 10 discrete steps, features electronically controlled fan speed and damper position)

Access port allows the introduction of sensors for independent data monitoring

A simple calibration routine ensures temperature accuracy over time

Boost function enables rapid heating up

Article Overview

Ovens Heratherm™ Advanced Protocol, with gravity convection

SKU	Type	Nominal capacity	Max. no. of inserts	Ext. dim. (WxDxH)	Int. Dim. (WxDxH)	Weight	Rated capacity	Name	Price	QuantitySelect all
4009212	OGH60	61 l	13	530 x 565 x 720 mm	328 x 389 x 480 mm	44 kg	1800 W	Ovens Heratherm™ Advanced Protocol, with gravity convection - OGH60, 61 l, 13, 530 x 565 x 720 mm, 328 x 389 x 480 mm, 44 kg, 1800 W	per unit / excl. VAT€ 2,810.00	Ovens Heratherm™ Advanced Protocol, with gravity convection quantity
4009213	OGH100	99 l	16	640 x 565 x 820 mm	438 x 389 x 580 mm	55 kg	3100 W	Ovens Heratherm™ Advanced Protocol, with gravity convection - OGH100, 99 l, 16, 640 x 565 x 820 mm, 438 x 389 x 580 mm, 55 kg, 3100 W	per unit / excl. VAT€ 3,510.00	Ovens Heratherm™ Advanced Protocol, with gravity convection quantity
4009214	OGH180	168 l	19	640 x 738 x 920 mm	438 x 564 x 680 mm	69 kg	3100 W	Ovens Heratherm™ Advanced Protocol, with gravity convection - OGH180, 168 l, 19, 640 x 738 x 920 mm, 438 x 564 x 680 mm, 69 kg, 3100 W	per unit / excl. VAT€ 3,830.00	Ovens Heratherm™ Advanced Protocol, with gravity convection quantity
