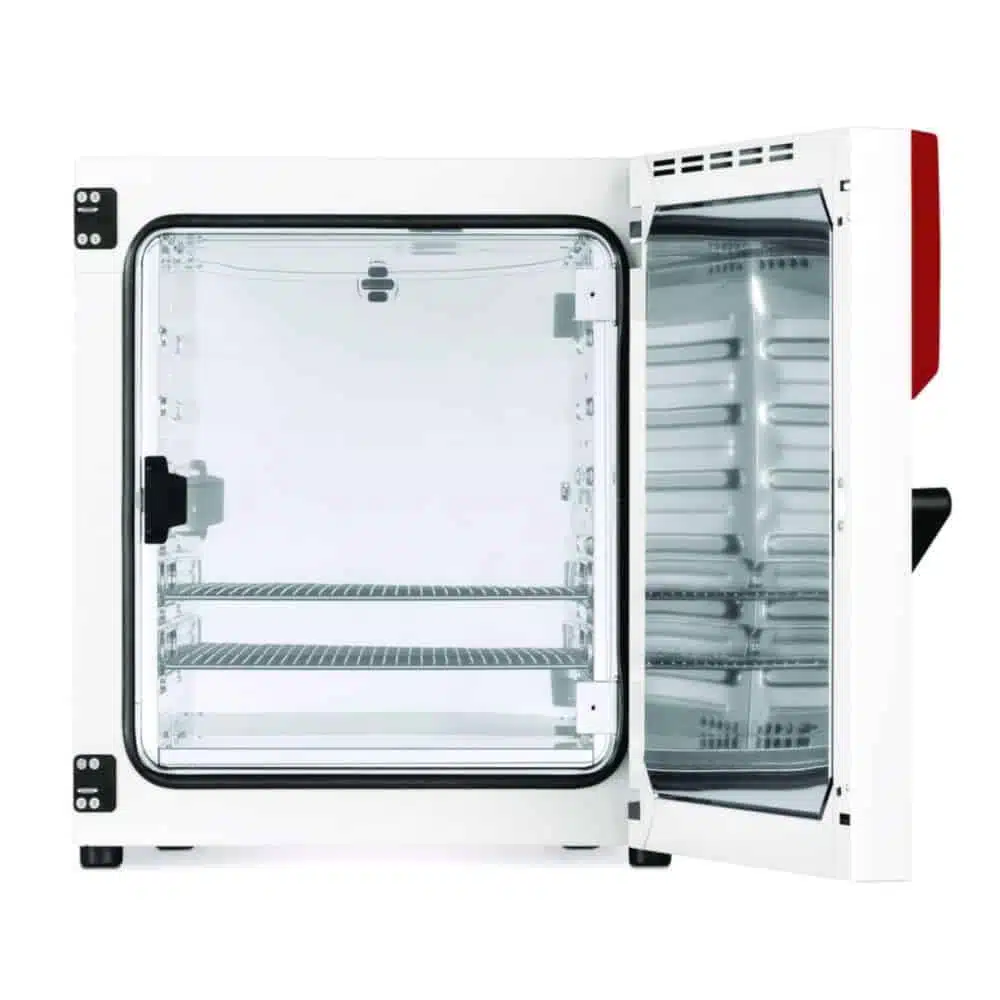

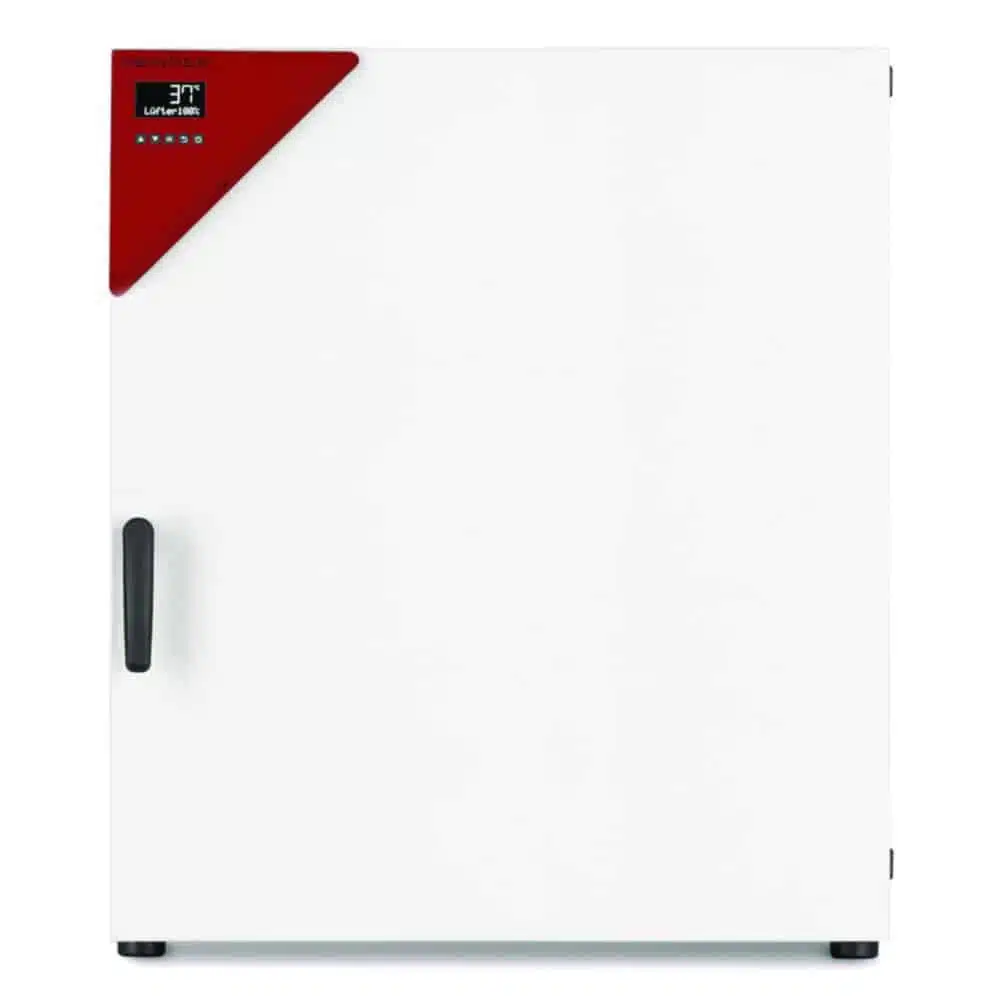

Incubators BD Avantgarde.Line

Manufacturer: BINDER GmbH

per unit / excl. VAT€ 1,721.00 - € 7,630.00

Type

BD 115
BD 115UL
BD 260
BD 260UL
BD 56
BD 56UL
BD 720
BD 720UL

Nominal capacity

112 l
253 l
57 l
737 l

Temperature stability

±0,1 K (37 °C)
±0,2 K (37 °C)

Max. no. of inserts

Ext. dim. (WxDxH)

1,165 x 870 x 1,590 mm
560 x 565 x 625 mm
710 x 605 x 705 mm
810 x 760 x 940 mm

Int. Dim. (WxDxH)

360 x 380 x 420 mm
510 x 420 x 530 mm
610 x 545 x 760 mm
960 x 600 x 1,280 mm

Weight

169 kg
39 kg
54 kg
85 kg

Rated capacity

0.3 kW
0.35 kW
0.85 kW
0.95 kW
1.65 kW
1.75 kW

Plug type

Power supply

120 V, 60 Hz
230 V, 50/60 Hz
240 V, 50/60 Hz

Clear

Delivery and Shipping Article Overview

Item No. 384

Manufacturer Item No.

Specifications

Temperature: RT+5 ... 100 °C
IP code: IP 20

Product Description

Incubators with natural convection

Article Overview

Incubators BD Avantgarde.Line

SKU	Type	Nominal capacity	Temperature stability	Max. no. of inserts	Ext. dim. (WxDxH)	Int. Dim. (WxDxH)	Weight	Rated capacity	Plug type	Power supply	Name	Price	QuantitySelect all
6280269	BD 56	57 l	±0,1 K (37 °C)	4	560 x 565 x 625 mm	360 x 380 x 420 mm	39 kg	0.3 kW	EU	230 V, 50/60 Hz	Incubators BD Avantgarde.Line - BD 56, 57 l, ±0,1 K (37 °C), 4, 560 x 565 x 625 mm, 360 x 380 x 420 mm, 39 kg, 0.3 kW, EU, 230 V, 50/60 Hz	per unit / excl. VAT€ 1,721.00	Incubators BD Avantgarde.Line quantity
4705500	BD 56UL	57 l	±0,1 K (37 °C)	4	560 x 565 x 625 mm	360 x 380 x 420 mm	39 kg	0.3 kW	US	120 V, 60 Hz	Incubators BD Avantgarde.Line - BD 56UL, 57 l, ±0,1 K (37 °C), 4, 560 x 565 x 625 mm, 360 x 380 x 420 mm, 39 kg, 0.3 kW, US, 120 V, 60 Hz	per unit / excl. VAT€ 1,721.00	Incubators BD Avantgarde.Line quantity
6280290	BD 115	112 l	±0,1 K (37 °C)	5	710 x 605 x 705 mm	510 x 420 x 530 mm	54 kg	0.35 kW	EU	230 V, 50/60 Hz	Incubators BD Avantgarde.Line - BD 115, 112 l, ±0,1 K (37 °C), 5, 710 x 605 x 705 mm, 510 x 420 x 530 mm, 54 kg, 0.35 kW, EU, 230 V, 50/60 Hz	per unit / excl. VAT€ 2,316.00	Incubators BD Avantgarde.Line quantity
4705501	BD 115UL	112 l	±0,1 K (37 °C)	5	710 x 605 x 705 mm	510 x 420 x 530 mm	54 kg	0.35 kW	US	120 V, 60 Hz	Incubators BD Avantgarde.Line - BD 115UL, 112 l, ±0,1 K (37 °C), 5, 710 x 605 x 705 mm, 510 x 420 x 530 mm, 54 kg, 0.35 kW, US, 120 V, 60 Hz	per unit / excl. VAT€ 2,316.00	Incubators BD Avantgarde.Line quantity
6280291	BD 260	253 l	±0,2 K (37 °C)	8	810 x 760 x 940 mm	610 x 545 x 760 mm	85 kg	0.85 kW	EU	230 V, 50/60 Hz	Incubators BD Avantgarde.Line - BD 260, 253 l, ±0,2 K (37 °C), 8, 810 x 760 x 940 mm, 610 x 545 x 760 mm, 85 kg, 0.85 kW, EU, 230 V, 50/60 Hz	per unit / excl. VAT€ 3,923.00	Incubators BD Avantgarde.Line quantity
4705502	BD 260UL	253 l	±0,2 K (37 °C)	8	810 x 760 x 940 mm	610 x 545 x 760 mm	85 kg	0.95 kW	US	120 V, 60 Hz	Incubators BD Avantgarde.Line - BD 260UL, 253 l, ±0,2 K (37 °C), 8, 810 x 760 x 940 mm, 610 x 545 x 760 mm, 85 kg, 0.95 kW, US, 120 V, 60 Hz	per unit / excl. VAT€ 3,923.00	Incubators BD Avantgarde.Line quantity
6274532	BD 720	737 l	±0,1 K (37 °C)	16	1,165 x 870 x 1,590 mm	960 x 600 x 1,280 mm	169 kg	1.65 kW	EU	230 V, 50/60 Hz	Incubators BD Avantgarde.Line - BD 720, 737 l, ±0,1 K (37 °C), 16, 1,165 x 870 x 1,590 mm, 960 x 600 x 1,280 mm, 169 kg, 1.65 kW, EU, 230 V, 50/60 Hz	per unit / excl. VAT€ 7,630.00	Incubators BD Avantgarde.Line quantity
4705504	BD 720UL	737 l	±0,1 K (37 °C)	16	1,165 x 870 x 1,590 mm	960 x 600 x 1,280 mm	169 kg	1.75 kW	US	240 V, 50/60 Hz	Incubators BD Avantgarde.Line - BD 720UL, 737 l, ±0,1 K (37 °C), 16, 1,165 x 870 x 1,590 mm, 960 x 600 x 1,280 mm, 169 kg, 1.75 kW, US, 240 V, 50/60 Hz	per unit / excl. VAT€ 7,630.00	Incubators BD Avantgarde.Line quantity
