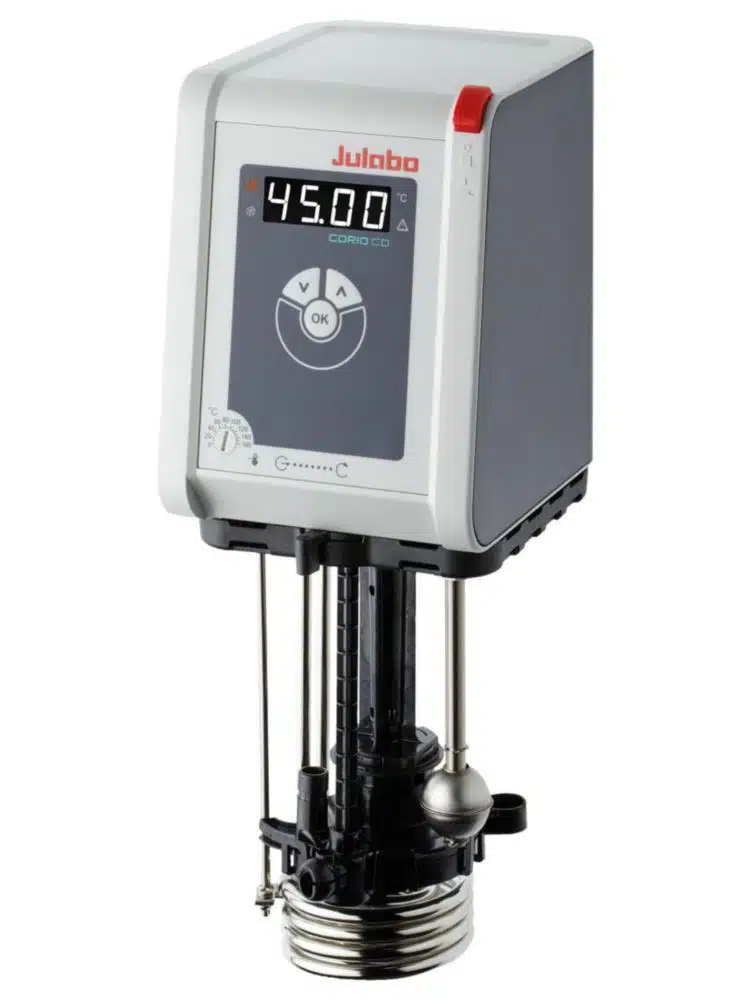

Immersion circulator CORIO™ CD

• Type: CORIO™ CD
• Temperature: 20 ... 150 °C
• Temperature stability: ±0,03 °C
• Max. flow rate: 15
• Max. delivery pressure: 0.35 bar
• Immersion depth: 166 mm
• Type of display: LED
• Operation: Membrane keyboard
• Dimensions (WxDxH): 132 x 160 x 366 mm
• Weight: 2.6 kg
• Heating capacity: 2 kW
• Plug type: EU
• Power supply: 230 V, 50 Hz , 10 A
• IP code: IP 21

With a few simple steps you can install a pump set onto the CORIO™ CD immersion circulator. In no time at all, the circulator is ready for temperature control of an external application.

• Precise temperature control
• Bright, white, easy-to-read display
• Whisper quiet
• Easy operation
• For bath tank up to 50 litres
• Pump change-over between internal and external circulation
• Powerful, continously variable pump
• USB interface
• Timer: 0 to 999 min
• Class III (FL) according to DIN 12876-1
