Available to Order?

Immersion circulator CC-E

Manufacturer: Peter Huber Kältemaschinenbau

per unit / excl. VAT€ 1,923.75 - € 2,328.75

Type

CC-E
CC-E xd

Max. flow rate

22
27

Max. suction capacity

17 l/min
22 l/min

Max. delivery pressure

0.4 bar
0.7 bar

Immersion depth

150 mm
195 mm

Max. suction pressure

0.25 bar
0.4 bar

Dimensions (WxDxH)

132 x 159 x 315 mm
132 x 159 x 360 mm

Weight

4 kg
5 kg

Clear

Delivery and Shipping Article Overview

Item No. 822998

Manufacturer Item No.

Specifications

Temperature: 25 ... 200 °C
Temperature stability: ±0,01 K
Type of display: TFT
Operation: Touchscreen
Heating capacity: 2 kW
Power supply: 200 ... 240 V, 50/60 Hz
IP code: IP 20

Product Description

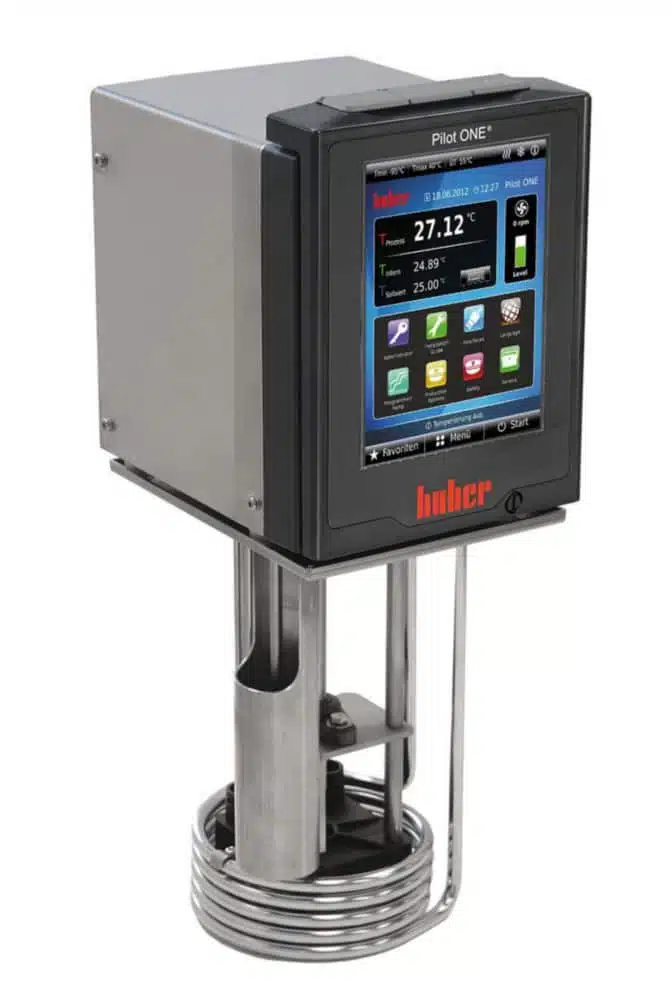

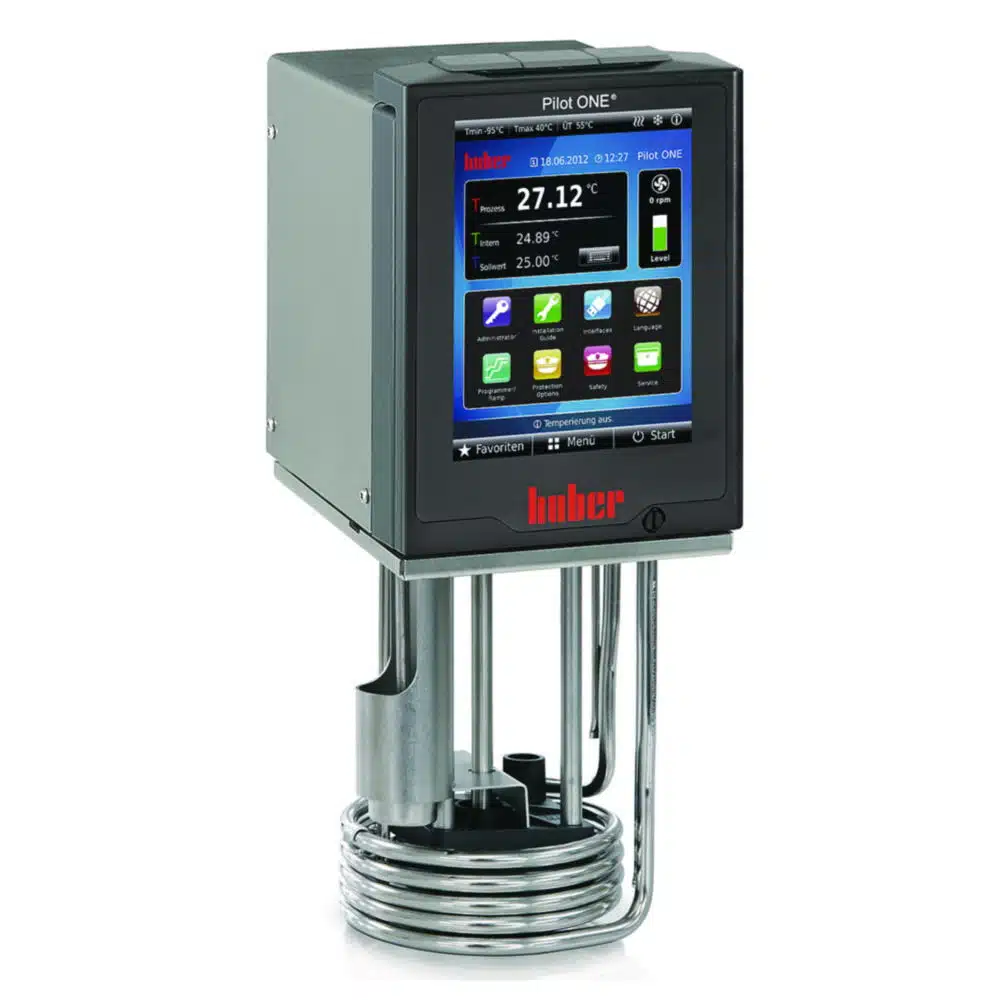

Immersion circulator with powerful pressure/suction pump and Pilot ONE controller with Plug & Play technology. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.

Large and full colour 5.7″ TFT touchscreen

Simple menu navigation in 13 languages

Programmer with calendar/clock functions

Ethernet, RS232 and USB interface

Pt100 external sensor connection

2-point calibration for control sensors

Safety class III (FL) acc. to DIN 12876

Article Overview

Immersion circulator CC-E

Stock	Image	SKU	Type	Max. flow rate	Max. suction capacity	Max. delivery pressure	Immersion depth	Max. suction pressure	Dimensions (WxDxH)	Weight	Name	Price	QuantitySelect all
		9859201	CC-E	27	22 l/min	0.7 bar	150 mm	0.4 bar	132 x 159 x 315 mm	4 kg	Immersion circulator CC-E - CC E, 27, 22 l/min, 0.7 bar, 150 mm, 0.4 bar, 132 x 159 x 315 mm, 4 kg	per unit / excl. VAT€ 1,923.75	Immersion circulator CC-E quantity
		6313816	CC-E xd	22	17 l/min	0.4 bar	195 mm	0.25 bar	132 x 159 x 360 mm	5 kg	Immersion circulator CC-E - CC E xd, 22, 17 l/min, 0.4 bar, 195 mm, 0.25 bar, 132 x 159 x 360 mm, 5 kg	per unit / excl. VAT€ 2,328.75	Immersion circulator CC-E quantity
