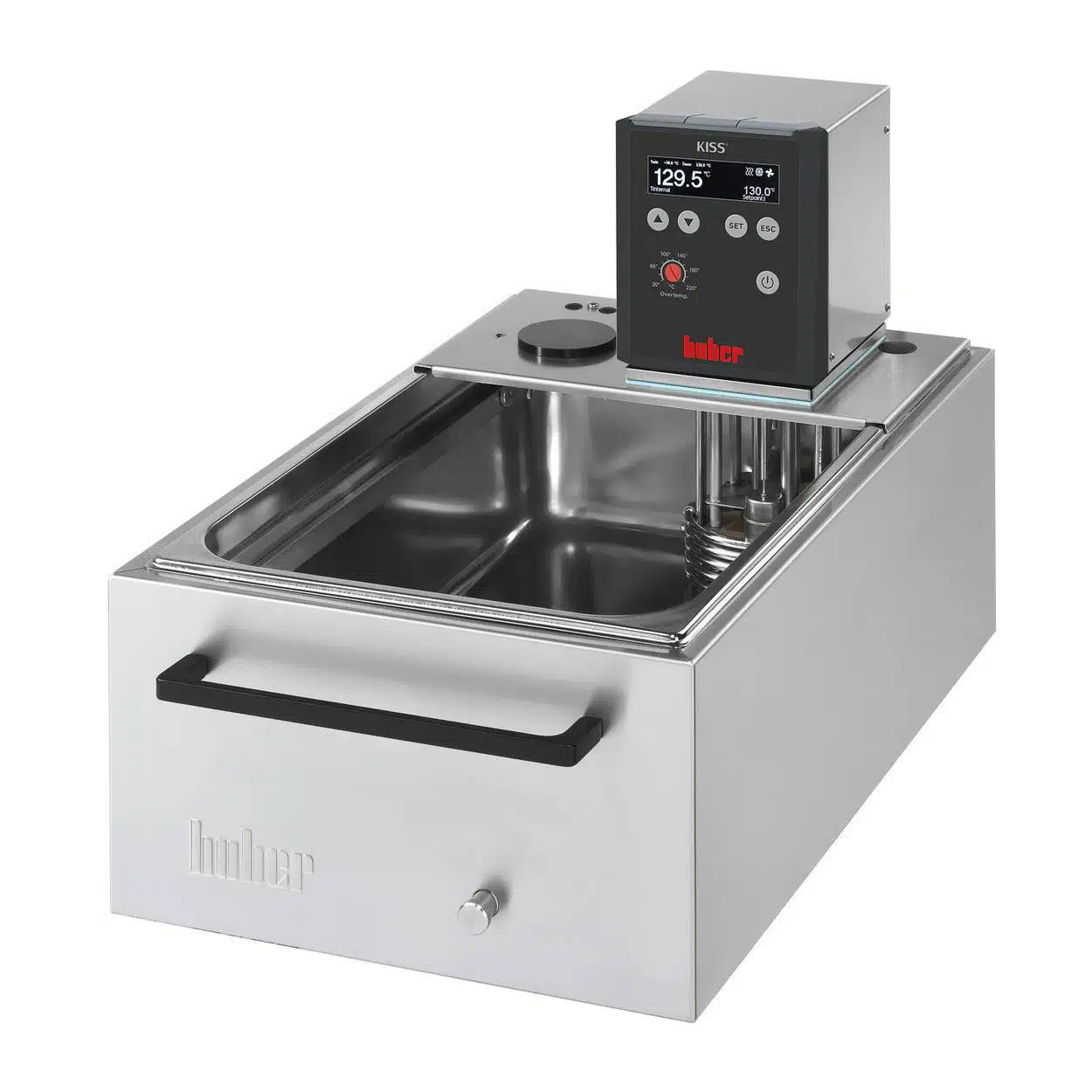

Heating bath thermostats KISS, with stainless steel bath

Manufacturer: Peter Huber Kältemaschinenbau

per unit / excl. VAT€ 1,832.63 - € 2,247.75

Type

KISS 208B
KISS 212B
KISS 215B
KISS 220B
KISS 225B

Volume bath

10.5 l
15 l
17 l
23.5 l
7.5 l

Opening (WxD)

230 x 127 mm
290 x 152 mm
290 x 329 mm

Bath depth

150 mm
200 mm

Ext. dim. (WxDxH)

290 x 350 x 375 mm
350 x 375 x 375 mm
350 x 375 x 425 mm
350 x 555 x 375 mm
350 x 555 x 425 mm

Weight

10 kg
11 kg
12 kg
14 kg
16 kg

Clear

Delivery and Shipping Article Overview

Heating bath thermostats KISS, with stainless steel bath

Item No. 947331

Manufacturer Item No.

Specifications

Material bath: Stainless steel
Temperature: 25 ... 200 °C
Temperature stability: ±0,05 K
Max. flow rate: 14
Max. suction capacity: 10.5 l/min
Max. delivery pressure: 0.25 bar
Max. suction pressure: 0.17 bar
Type of display: OLED
Heating capacity: 2.1 kW
Power supply: 200 ... 240 V, 50/60 Hz
IP code: IP 20

Product Description

The insulated stainless steel baths are suitable for temperatures up to 200 °C. All models come with a KISS immersion circulator mounted on a bath bridge. With a pump adapter, the combinations can be used for both externally closed and externally open (with optional level control) temperature applications. The devices are equipped with overtemperature and low level protection.

Powerful pressure/suction pump

Large, bright OLED display

Simple operation with menu navigation

Simultaneous display of setpoint, actual temperature, Tmin, Tmax

Status displays for pump, cooling, and heating

RS232 and USB interface

Autostart function for power failure

Safety class III (FL) acc. to DIN 12876

Article Overview

Heating bath thermostats KISS, with stainless steel bath

SKU	Type	Volume bath	Opening (WxD)	Bath depth	Ext. dim. (WxDxH)	Weight	Name	Price	QuantitySelect all

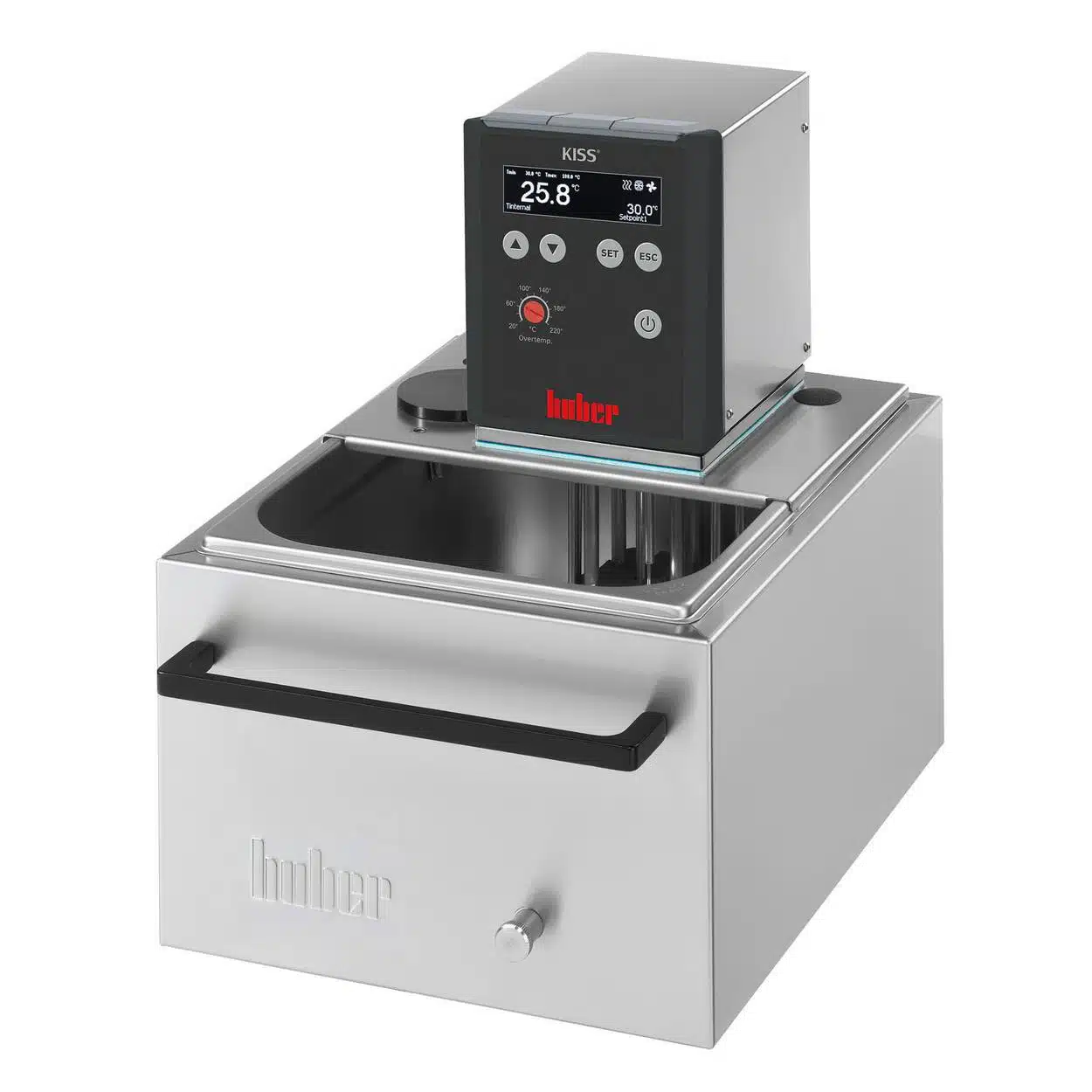

6272343	KISS 208B	7.5 l	230 x 127 mm	150 mm	290 x 350 x 375 mm	10 kg	Heating bath thermostats KISS, with stainless steel bath - KISS 208B, 7.5 l, 230 x 127 mm, 150 mm, 290 x 350 x 375 mm, 10 kg	per unit / excl. VAT€ 1,832.63	Heating bath thermostats KISS, with stainless steel bath quantity
6272342	KISS 212B	10.5 l	290 x 152 mm	150 mm	350 x 375 x 375 mm	11 kg	Heating bath thermostats KISS, with stainless steel bath - KISS 212B, 10.5 l, 290 x 152 mm, 150 mm, 350 x 375 x 375 mm, 11 kg	per unit / excl. VAT€ 1,964.25	Heating bath thermostats KISS, with stainless steel bath quantity
6272341	KISS 215B	15 l	290 x 152 mm	200 mm	350 x 375 x 425 mm	12 kg	Heating bath thermostats KISS, with stainless steel bath - KISS 215B, 15 l, 290 x 152 mm, 200 mm, 350 x 375 x 425 mm, 12 kg	per unit / excl. VAT€ 2,045.25	Heating bath thermostats KISS, with stainless steel bath quantity
6272340	KISS 220B	17 l	290 x 329 mm	150 mm	350 x 555 x 375 mm	14 kg	Heating bath thermostats KISS, with stainless steel bath - KISS 220B, 17 l, 290 x 329 mm, 150 mm, 350 x 555 x 375 mm, 14 kg	per unit / excl. VAT€ 2,106.00	Heating bath thermostats KISS, with stainless steel bath quantity
6272339	KISS 225B	23.5 l	290 x 329 mm	200 mm	350 x 555 x 425 mm	16 kg	Heating bath thermostats KISS, with stainless steel bath - KISS 225B, 23.5 l, 290 x 329 mm, 200 mm, 350 x 555 x 425 mm, 16 kg	per unit / excl. VAT€ 2,247.75	Heating bath thermostats KISS, with stainless steel bath quantity
