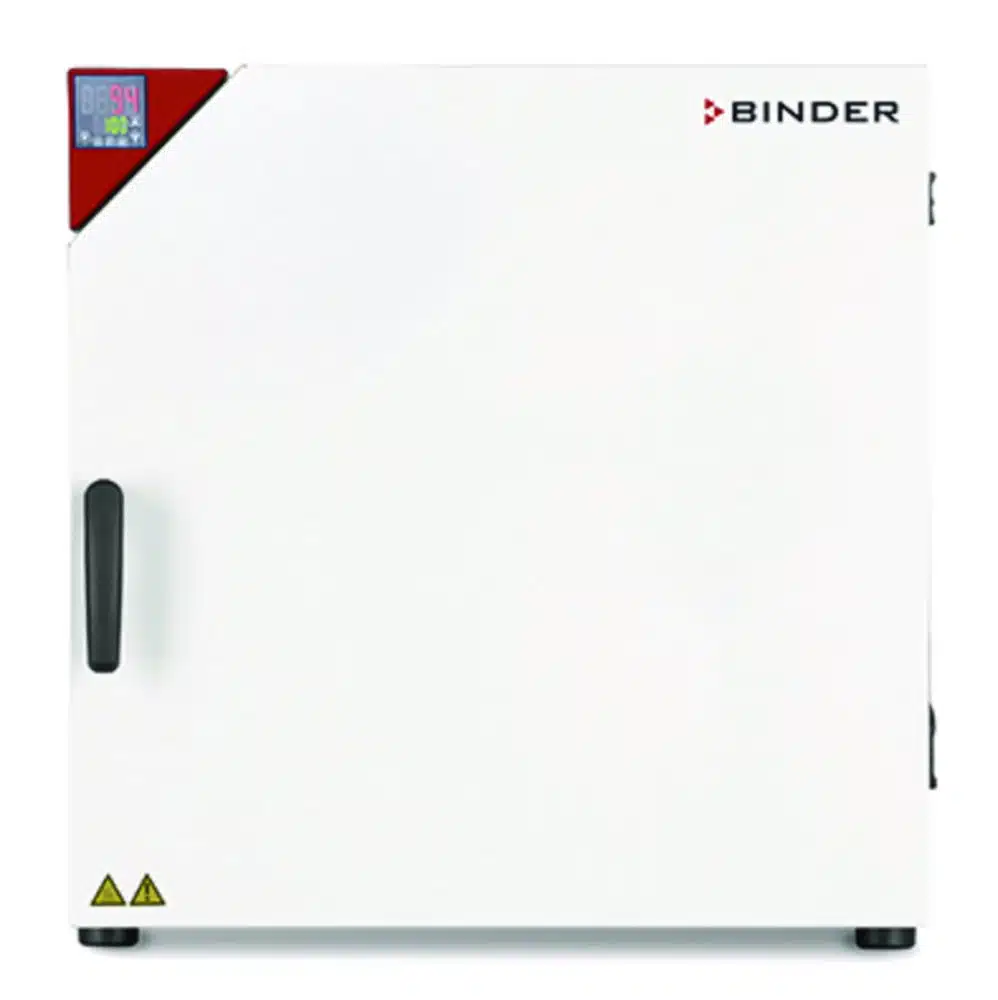

Drying and heating chambers ED-S Solid.Line

Manufacturer: BINDER GmbH

per unit / excl. VAT€ 1,312.00 - € 1,637.00

Type

ED-S 115
ED-S 115UL
ED-S 56
ED-S 56UL

Nominal capacity

118 l
62 l

Max. no. of inserts

3
5

Power supply

120 V, 60 Hz
230 V, 50/60 Hz

Temperature stability

±0,8 K (150 °C)
±0,9 K (150 °C)

Int. Dim. (WxDxH)

400 x 350 x 440 mm
550 x 390 x 550 mm

Ext. dim. (WxDxH)

614 x 577 x 625 mm
764 x 616 x 735 mm

Weight

36 kg
50 kg

Rated capacity

1050 W
1150 W
1250 W
1350 W

Plug type

EU
US

Clear

Delivery and Shipping Article Overview

Drying and heating chambers ED-S Solid.Line

Item No. 8801

Manufacturer Item No.

Specifications

Temperature: RT+7 ... 250 °C
IP code: IP 20

Product Description

With natural convection for homogenous temperature distribution.

Article Overview

Drying and heating chambers ED-S Solid.Line

SKU	Type	Nominal capacity	Max. no. of inserts	Power supply	Temperature stability	Int. Dim. (WxDxH)	Ext. dim. (WxDxH)	Weight	Rated capacity	Plug type	Name	Price	QuantitySelect all
4665042	ED-S 56	62 l	3	230 V, 50/60 Hz	±0,8 K (150 °C)	400 x 350 x 440 mm	614 x 577 x 625 mm	36 kg	1050 W	EU	Drying and heating chambers ED-S Solid.Line - ED S 56, 62 l, 3, 230 V, 50/60 Hz, ±0,8 K (150 °C), 400 x 350 x 440 mm, 614 x 577 x 625 mm, 36 kg, 1050 W, EU	per unit / excl. VAT€ 1,312.00	Drying and heating chambers ED-S Solid.Line quantity
4705563	ED-S 56UL	62 l	3	120 V, 60 Hz	±0,8 K (150 °C)	400 x 350 x 440 mm	614 x 577 x 625 mm	36 kg	1150 W	US	Drying and heating chambers ED-S Solid.Line - ED S 56UL, 62 l, 3, 120 V, 60 Hz, ±0,8 K (150 °C), 400 x 350 x 440 mm, 614 x 577 x 625 mm, 36 kg, 1150 W, US	per unit / excl. VAT€ 1,312.00	Drying and heating chambers ED-S Solid.Line quantity
4667816	ED-S 115	118 l	5	230 V, 50/60 Hz	±0,9 K (150 °C)	550 x 390 x 550 mm	764 x 616 x 735 mm	50 kg	1250 W	EU	Drying and heating chambers ED-S Solid.Line - ED S 115, 118 l, 5, 230 V, 50/60 Hz, ±0,9 K (150 °C), 550 x 390 x 550 mm, 764 x 616 x 735 mm, 50 kg, 1250 W, EU	per unit / excl. VAT€ 1,637.00	Drying and heating chambers ED-S Solid.Line quantity
4705564	ED-S 115UL	118 l	5	120 V, 60 Hz	±0,9 K (150 °C)	550 x 390 x 550 mm	764 x 616 x 735 mm	50 kg	1350 W	US	Drying and heating chambers ED-S Solid.Line - ED S 115UL, 118 l, 5, 120 V, 60 Hz, ±0,9 K (150 °C), 550 x 390 x 550 mm, 764 x 616 x 735 mm, 50 kg, 1350 W, US	per unit / excl. VAT€ 1,637.00	Drying and heating chambers ED-S Solid.Line quantity
