Dispersing heads for T10 ULTRA-TURRAX^®

Manufacturer: IKA-Werke GmbH & Co.KG

per unit / excl. VAT€ 599.40 - € 1,687.00

Type

S 10 D-7 G-KS - 110
S 10 D-7 G-KS - 65
S 10 N - 10 G
S 10 N - 10 G ST
S 10 N - 5 G
S 10 N - 8 G
S 10 N - 8 G ST

Working volume

0.5 ... 10 ml
1 ... 100 ml
1 ... 20 ml
1 ... 40 ml
1 ... 50 ml

Stator Ø

10 mm
5 mm
7 mm
8 mm

Ø rotor

3.8 mm
4.8 mm
6.1 mm
7.5 mm
7.6 mm

Immersion depth

20 ... 100 mm
20 ... 45 mm
20 ... 75 mm
20 ... 90 mm
20 ... 95 mm
22 ... 95 mm
23 ... 100 mm

Max. temperature

100 °C
180 °C

Material

PC/PSU
PTFE/Stainless steel

Clear

Delivery and Shipping Article Overview

Dispersing heads for T10 ULTRA-TURRAX<sup>®</sup>

Item No. 7243

Manufacturer Item No.

Specifications

Final fineness suspension: 5 ... 25 µm
Final fineness emulsion: 1 ... 10 µm

Product Description

Dispersing heads, plastic: Autoclavable. Dispersing heads, stainless steel: Ultimate fineness: emulsions 1 to 10 µm and suspensions 5 to 25 µm, sterilisable by all methods. ST tools are recommended for use with tissue and other fibrous materials.

Article Overview

Dispersing heads for T10 ULTRA-TURRAX^®

SKU	Type	Working volume	Stator Ø	Ø rotor	Immersion depth	Max. temperature	Material	Name	Price	QuantitySelect all
6262140	S 10 D-7 G-KS - 65	1 ... 20 ml	7 mm	4.8 mm	20 ... 45 mm	100 °C	PC/PSU	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 D 7 G KS 65, 1 ... 20 ml, 7 mm, 4.8 mm, 20 ... 45 mm, 100 °C, PC/PSU	per unit / excl. VAT€ 599.40	Dispersing heads for T10 ULTRA-TURRAX® quantity

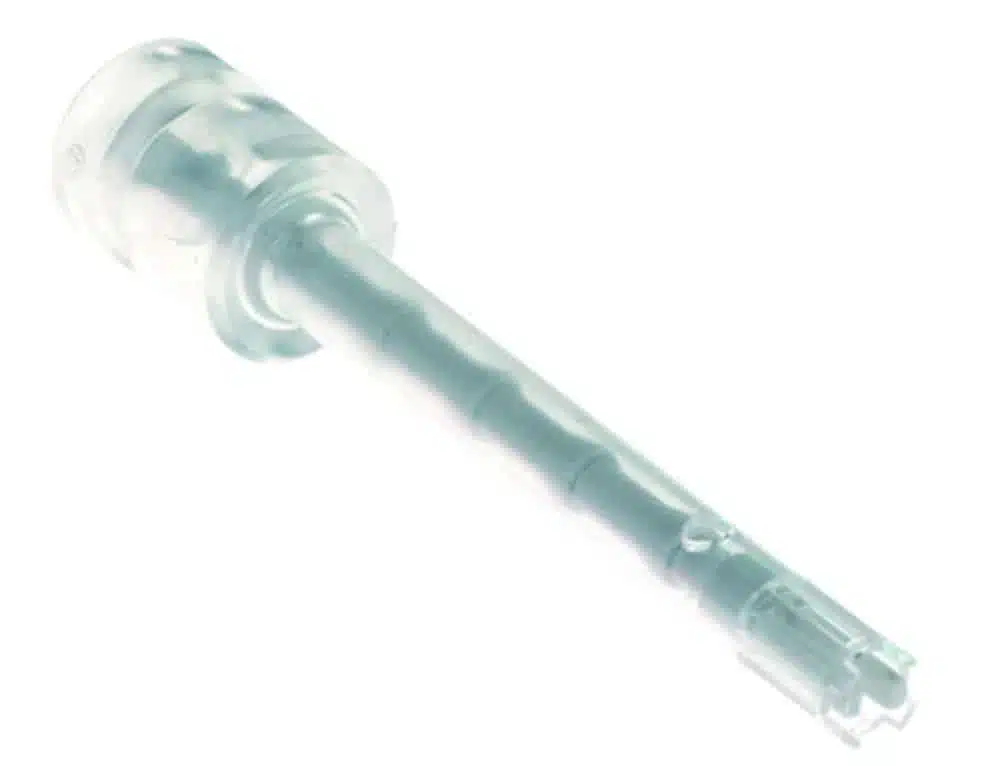

9570878	S 10 D-7 G-KS - 110	1 ... 40 ml	7 mm	4.8 mm	20 ... 90 mm	100 °C	PC/PSU	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 D 7 G KS 110, 1 ... 40 ml, 7 mm, 4.8 mm, 20 ... 90 mm, 100 °C, PC/PSU	per unit / excl. VAT€ 677.16	Dispersing heads for T10 ULTRA-TURRAX® quantity

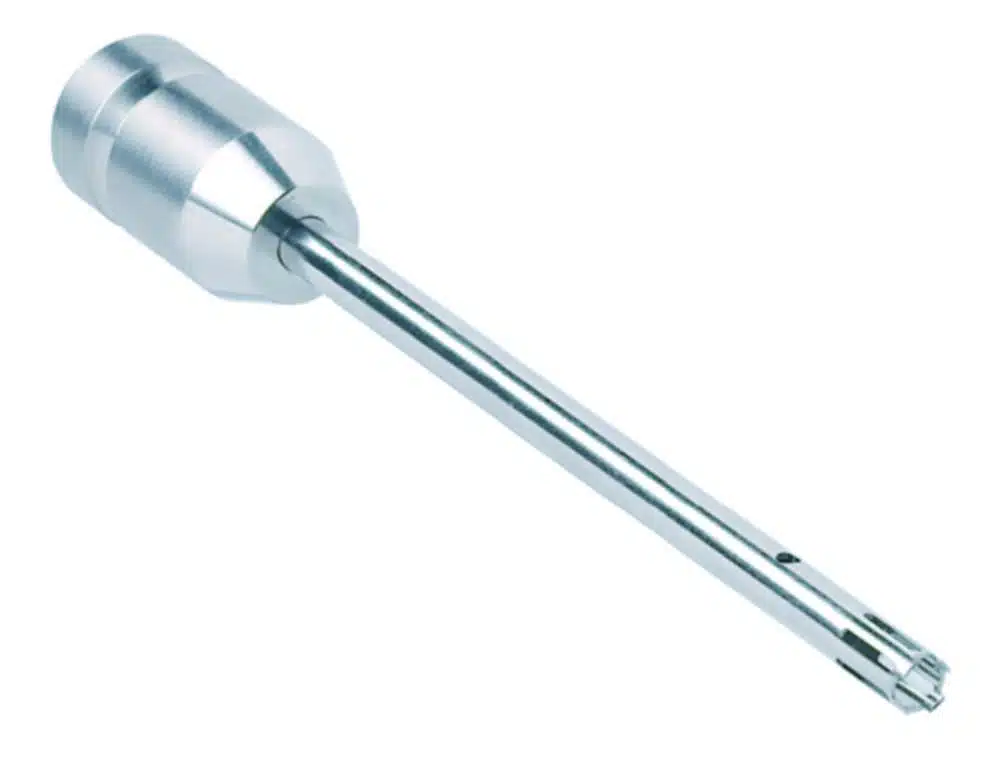

7631964	S 10 N - 5 G	0.5 ... 10 ml	5 mm	3.8 mm	20 ... 75 mm	180 °C	PTFE/Stainless steel	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 N 5 G, 0.5 ... 10 ml, 5 mm, 3.8 mm, 20 ... 75 mm, 180 °C, PTFE/Stainless steel	per unit / excl. VAT€ 1,558.00	Dispersing heads for T10 ULTRA-TURRAX® quantity

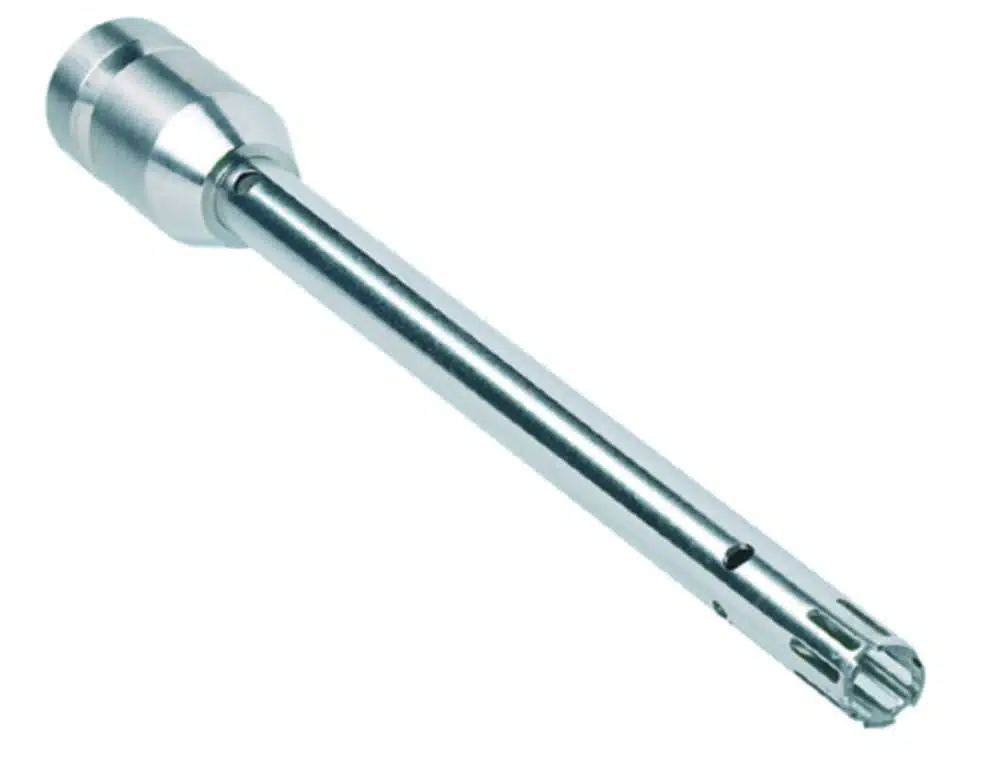

6225614	S 10 N - 8 G	1 ... 50 ml	8 mm	6.1 mm	20 ... 95 mm	180 °C	PTFE/Stainless steel	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 N 8 G, 1 ... 50 ml, 8 mm, 6.1 mm, 20 ... 95 mm, 180 °C, PTFE/Stainless steel	per unit / excl. VAT€ 1,558.00	Dispersing heads for T10 ULTRA-TURRAX® quantity
4656091	S 10 N - 8 G ST	1 ... 50 ml	8 mm	6.1 mm	22 ... 95 mm	180 °C	PTFE/Stainless steel	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 N 8 G ST, 1 ... 50 ml, 8 mm, 6.1 mm, 22 ... 95 mm, 180 °C, PTFE/Stainless steel	per unit / excl. VAT€ 1,687.00	Dispersing heads for T10 ULTRA-TURRAX® quantity

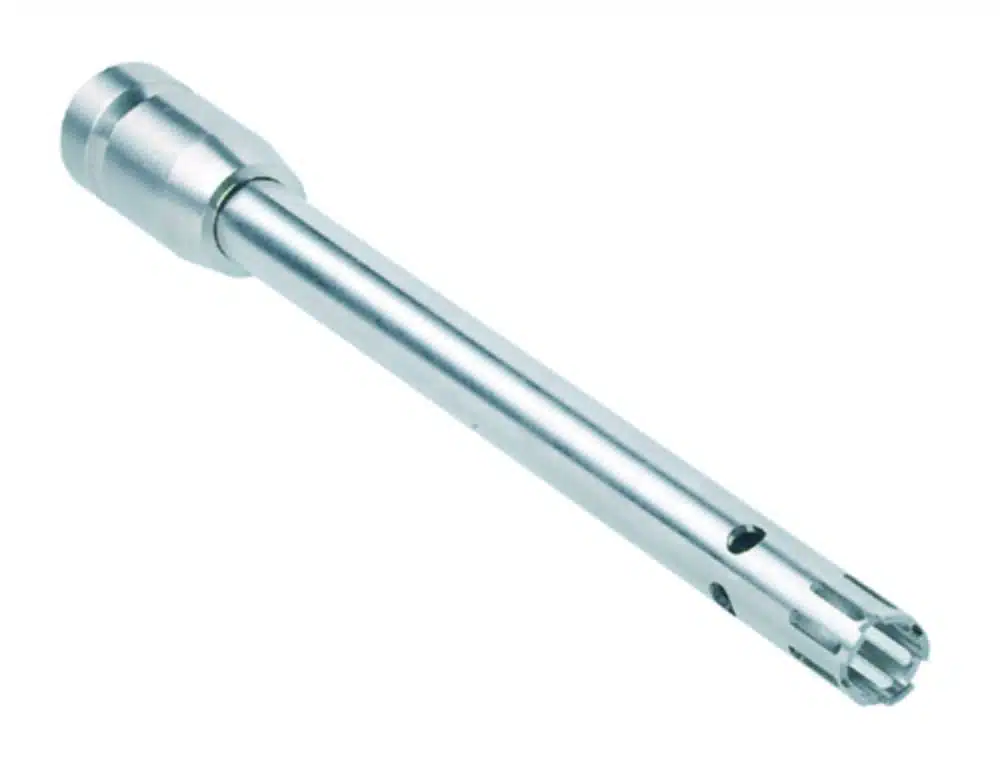

6225477	S 10 N - 10 G	1 ... 100 ml	10 mm	7.6 mm	20 ... 100 mm	180 °C	PTFE/Stainless steel	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 N 10 G, 1 ... 100 ml, 10 mm, 7.6 mm, 20 ... 100 mm, 180 °C, PTFE/Stainless steel	per unit / excl. VAT€ 1,558.00	Dispersing heads for T10 ULTRA-TURRAX® quantity
7670460	S 10 N - 10 G ST	1 ... 100 ml	10 mm	7.5 mm	23 ... 100 mm	180 °C	PTFE/Stainless steel	Dispersing heads for T10 ULTRA-TURRAX^® - S 10 N 10 G ST, 1 ... 100 ml, 10 mm, 7.5 mm, 23 ... 100 mm, 180 °C, PTFE/Stainless steel	per unit / excl. VAT€ 1,687.00	Dispersing heads for T10 ULTRA-TURRAX® quantity
