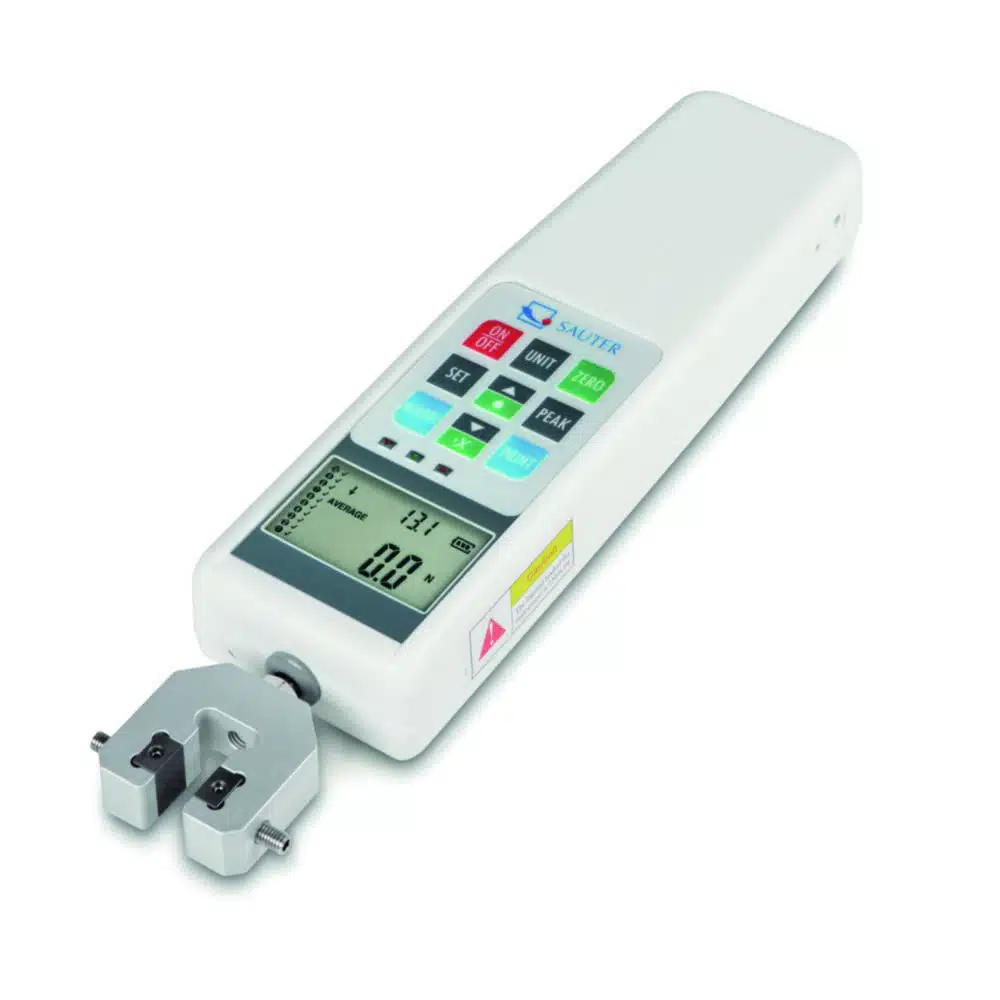

Digital force gauge FH-S with screw-in tension clamp

• Measured range: 500 N
• Readability: 0,1 N
• Dimensions (WxDxH): 230 x 66 x 36 mm
• Weight: 0.64 kg
• Plug type: EU

Universal digital force gauges for tension and compression tests with integrated measuring cell.

• Turnable display with backlight
• Digital force gauge with internal sensor
• Data interface RS-232
• Selectable measuring units: N, lb, kg
• Peak-Hold function to capture peaks (measurement result will be “frozen” for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)
• Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard parts
• Auto-Power-Off
• Internal memory for up to 10 measurements
• Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
• Can be mounted on all SAUTER test stands

Scope of supply:
Force gauge, carrying case, screw-in tension clamp AE 500
