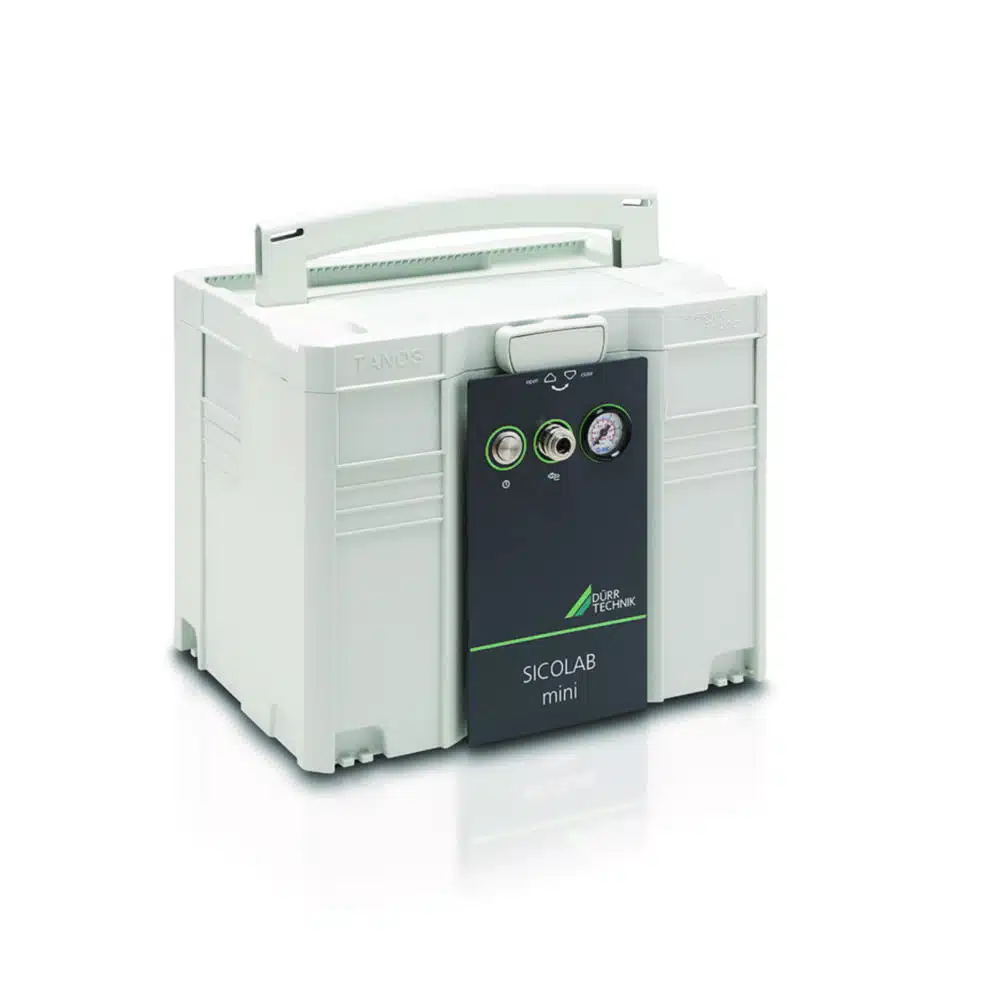

Compressor station SICOLAB mini

• Type: SICOLAB 038 mini
• Flow rate: 20 l/min
• Pressure: 7 bar
• Noise level: 50 db(A)
• Dimensions (WxDxH): 396 x 347 x 343 mm
• Weight: 16 kg
• Rated capacity: 0.34 kW
• Power supply: 230 V, 50/60 Hz
• IP code: IP 20

Compact, soundproofed compressor for use with compressed air in laboratories. The oil-free plug-and-play compressor unit with integrated carrying handle offers minimal maintenance and maximum flexibility. The SICOLAB mini is equipped with a 2 l pressure receiver, automatic condensate drain, electromagnetic start-up relief, and an operating hours meter.

• Very smooth start-up
• Extremely quiet
• Maintenance-free except for filter replacement
• Compressed air connection via quick coupling directly in the housing
• Oil-free compressor aggregate
• Air receiver with internal coating
• Pressure reducer
• Pressure switch
• Pressure gauge readable from the outside
• Safety valve
• On/off switch with fuse
