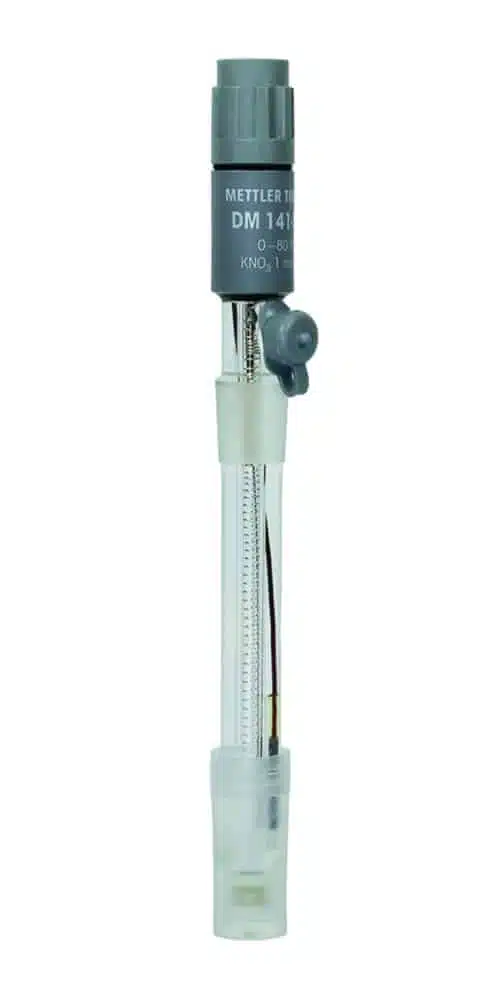

Combined redox electrodes

• Type: DM143-SC
• mV range: -2000 ... 2000
• Temperature: 0 ... 100 °C
• Material sensor: Platinum
• Shape sensor: Pin
• Connection plug: S7 plug head
• Shaft length: 144.5 mm

DMi140-SC: Combined platinum ring redox electrode. For titrations with a change of the pH value, e.g. oxidation with potassium permanganate, copper determination with iodine, back titration with thiosulfate. With S12 screw cap and ARGENTHAL™ reference system. Plug & Play functionality.

DMi141-SC: Combined silver ring electrode for argentometric titrations, determination of halides, sulfides and mercaptanes in aqueous media. Also suitable for determination of salt and silver content. With S12 screw cap and ARGENTHAL™ reference system. Plug & Play functionality.

DM143-SC: Double pin platinum electrode for electrochemical titrations, e.g. water determination acc. to Karl Fischer, bromine number determination and sulfur dioxide determination in aqueous media. With S7 screw cap and ARGENTHAL™ reference system.

DMi144-SC: Combined platinum ring redox electrode. For titrations with a change of the pH value, especially designed for COD determination with the Rondo 20 COD rack. With Plug & Play functionality and ARGENTHAL™ reference system.

DMi145-SC: Combined silver ring electrode for argentometric titrations, determination of halides, sulfides and mercaptanes in aqueous media. Also suitable for determination of salt and silver content. With Plug & Play functionality and ARGENTHAL™ reference system.

DMi148-SC: Combined silver ring electrode for argentometric titrations without a change of the pH value. For determination of halides, cyanides, sulfides and mercaptanes in mineral oil and bioethanol.
