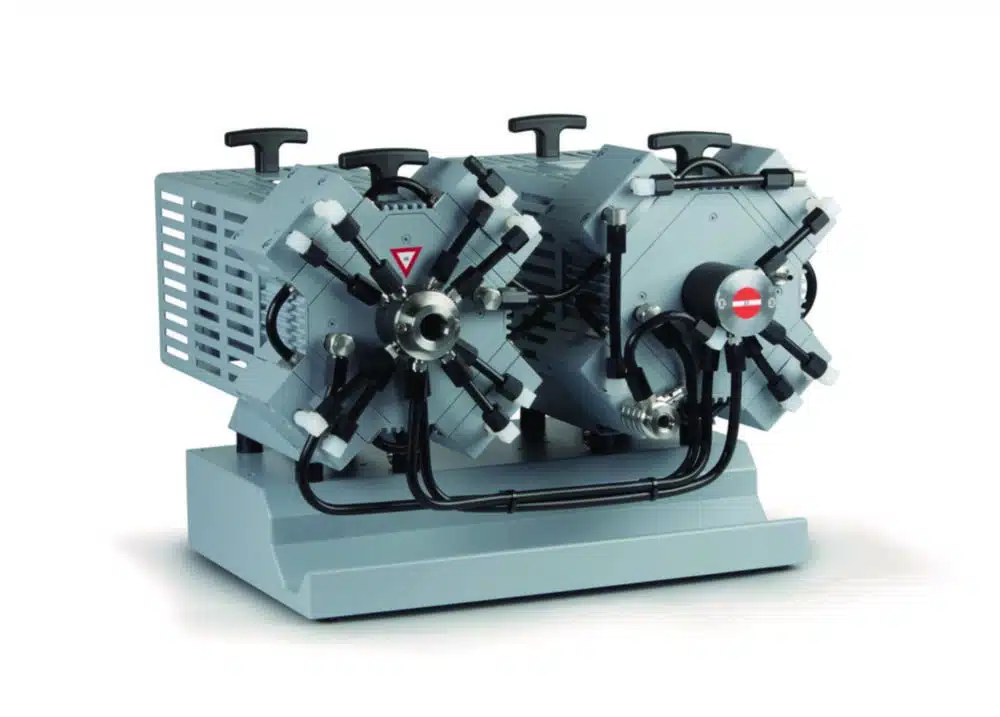

Chemistry Diaphragm Vacuum Pump MV 10C EX with ATEX compliance

• Type: MV 10C EX
• Flow rate: 8.1 m³/h
• Ultimate vacuum: 2 mbar
• Ultimate vacuum with gas ballast: 10 mbar
• No. of stages: 4
• Connection suction side: KF DN 25
• Connection pressure side: KF DN 16
• Dimensions (WxDxH): 430 x 560 x 410 mm
• Plug type: stranded wire

ATEX chemistry diaphragm pumps offer all advantages of oil-free chemistry diaphragm pumps. Typical applications are rotary evaporators and drying ovens with potentially explosive atmospheres. The ATEX approval includes the interior of the pump (in contact with pumped gases) as well as the surrounding area of the pump.

• Outstanding chemical resistance and superior vapor tolerance
• Mainly made of antistatic materials
• Flame proof motor with integrated, self-locking overload and excess temperature protection for direct 230V / 50Hz single phase power supply
• Overpressure safety relief valves internally and at outlet
• With separate gas ballast connection part for use of inert gas
• Safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage

ATEX compliance:
Pump chamber (pumped gases): II 2G Ex h IIC T3 Gb X
Exterior space (pump environment): II 2G Ex h IIB T4 Gb X (with inert gas purging) / II 3G Ex h IIB T4 Gc X (without inert gas purging)
